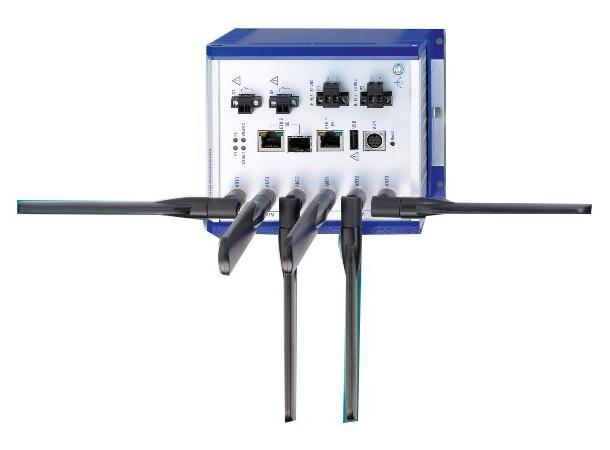

Hirschmann OpenBAT - WLAN - Wi-Fi
Modulært Industriell Trådløst Aksesspunkt/klient.
Rugged wireless LAN access point and/or client for use in industrial environments. Robust metal housing for mounting on DIN rails
Radio protocol
IEEE802.11a/b/g/h/n WLAN interface as per IEEE802.11n, up to 450MBit/s gross bandwidth.
Type
BAT-REUW99AWW99AO799S999HH08.60.1234
Order No.
BAT-REUW99AWW99AO799S999HH08.60.1234
Unterstützte Funkstandards
IEEE802.11a/b/g/h/n; 1st WLAN interface as per IEEE802.11n
More Interfaces
Ethernet RJ45 LAN combo-port: 10/100/1000BASE-TX, 1000BASE-SX/LX
Power supply/signaling contact
1 x terminal block, 2-pin; 1 x terminal block, 2-pin
V.24 interface
- Configuration interface (COM)
- AT modem connection
- For automatic P2P connections verified over V.24 (train carriage coupling)
- Serial gateway for WLAN or virtual COM interface via WLAN
USB interface
1 x USB to connect the AutoConfiguration Adapter ACA21-USB
Radio technology
Antenna connector Reverse SMA socket, 3 x MiMo antenna connectors
Range
Depends on type of antenna, frequency range and data rate. Use the BAT-Planner for planning your wireless network.
Frequency band
Supports 2.4 GHz and 5 GHz: 2400 -2483.5 MHz (ISM) and 5170 -5850 MHz
Modulation
22M0F7D (DSSS/OFDM) at 2.4 GHz20M0G7D (OFDM) at 5 GHz
Encryption
IEEE 802.11i / WPA2 with passphrase or 802.1x and hardware-accelerated AES, closed network, WEP64, WEP128, WEP152, user
authentication, 802.1x /EAP, LEPS, WPA1/TKIP. Please refer to the HiLCOS data sheet for further information.
Power requirements
Operating voltage
Voltage Range 1: 24 VDC (19.2-32 VDC); Voltage Range 2: 24 VDC (19.2-32 VDC)
Current consumption
9 W
Ambient conditions
Operating temperature 0 ºC ... 60 ºC
Note
Temperature of the surrounding air.
Storage/transport temperature
-40 ºC ... 85 ºC
Relative humidity (non-condensing)
10 % ... 95 %
Mechanical construction
Dimensions (W x H x D)
120 mm x 136 mm x 115 mm
Mounting
DIN Rail
Protection class
IP30
Approvals
EN 60950-1
Radio
R&TTE; EN 300 328 (2.4GHz), EN 301 893 (5 GHz); EN 301 489-1, EN 301 489-17
