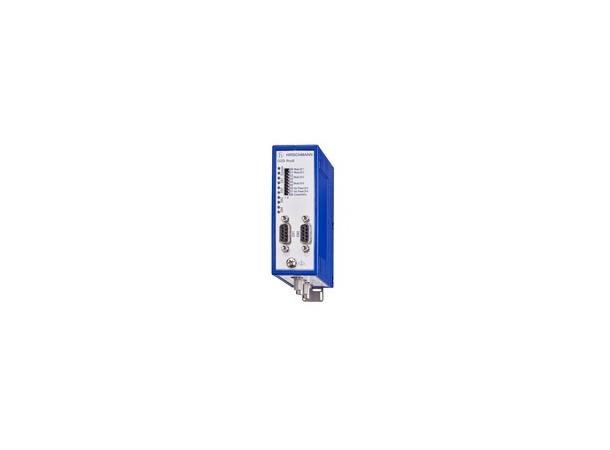

Hirschmann OZD Profi 12M G111 x ST, Multimode fiber, ATEX Zone 2

Product description

Description	New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quartz glass FO; approval for Ex-zone 2 (Class 1, Div. 2)
Port type and quantity	1 x optical: 2 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1
Type	OZD Profi 12M G11
Order No.	942 148-001

Electrical interface

Signal type	PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)
Bit rate	9.6; 19.2; 45.45; 93.75; 187.5; 500 kbit/s; 1.5; 3; 6; 12 Mbit/s (automatic setting)
Signal delay time (optional input/output)	<= 6.5 bit times
Input/output signal	RS 485 level
Input voltage range	-7 V ... +12 V
Galvanic isolation	yes

Optical interface

Wavelength	860 nm
Cascadibility	not limited

More Interfaces

Power supply	8-pin terminal block, screw mounting
Signaling contact	8-pin terminal block, screw mounting
Measuring outputs "Optical input power"	8-pin terminal block, screw mounting

Network size - length of cable

Single mode fiber (SM) 9/125 µm	-
Multimode fiber (MM) 50/125 µm	1700 m, 11 dB link budget at 860 nm A = 3 dB/km, 3 dB reserve
Multimode fiber (MM) 62.5/125 µm	2300 m, 15 dB link budget at 860 nm A = 3.5 dB/km, 3 dB reserve
Multimode fiber HCS (MM) 200/230 µm	1000 m, 18 dB link budget at 860 nm A = 8 dB/km, 3 dB reserve
Multimode fiber POF (MM) 980/1000 µm	-

Power requirements

Operating voltage	18 ... 32 VDC, typ. 24 VDC
Galvanic isolation	yes
Current consumption	max. 190 mA
Power consumption	4.5 W
Output voltage/output current (pin6)	5 VDC +5%, -10%, short circuit-proof/10 mA

Redundancy

Redundancy functions

redundant 24 V infeed

Ambient conditions

Operating temperature	0 ºC to +60 ºC
Storage/transport temperature	-40 ºC to +70 ºC
Relative humidity	<95% (non-condensing)

Mechanical construction

Dimensions (W x H x D)	40 x 140 x 77.5 mm
Mounting	DIN rail or mounting plate
Weight	500 g
Protection class	IP 40
Housing material	die-cast zink

Approvals

Hazardous locations

ATEX Zone 2 (pending)

Scope of delivery and accessories

Scope of delivery

device, start-up instructions

Hirschmann OZD Profi 12M G11 1 x ST, Multimode fiber, ATEX Zone 2

Tilbehør

Alternativer

Artikler

Antall artikler funnet:

Hirschmann OZD Profi 12M G11

1 x ST, Multimode fiber, ATEX Zone 2

Varenr: 942 148-001

Beskrivelse
Dokumentasjon

Product description

Description	New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quartz glass FO; approval for Ex-zone 2 (Class 1, Div. 2)
Port type and quantity	1 x optical: 2 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1
Type	OZD Profi 12M G11
Order No.	942 148-001

Electrical interface

Signal type	PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)
Bit rate	9.6; 19.2; 45.45; 93.75; 187.5; 500 kbit/s; 1.5; 3; 6; 12 Mbit/s (automatic setting)
Signal delay time (optional input/output)	<= 6.5 bit times
Input/output signal	RS 485 level
Input voltage range	-7 V ... +12 V
Galvanic isolation	yes

Optical interface

Wavelength	860 nm
Cascadibility	not limited

More Interfaces

Power supply	8-pin terminal block, screw mounting
Signaling contact	8-pin terminal block, screw mounting
Measuring outputs "Optical input power"	8-pin terminal block, screw mounting

Network size - length of cable

Single mode fiber (SM) 9/125 µm	-
Multimode fiber (MM) 50/125 µm	1700 m, 11 dB link budget at 860 nm A = 3 dB/km, 3 dB reserve
Multimode fiber (MM) 62.5/125 µm	2300 m, 15 dB link budget at 860 nm A = 3.5 dB/km, 3 dB reserve
Multimode fiber HCS (MM) 200/230 µm	1000 m, 18 dB link budget at 860 nm A = 8 dB/km, 3 dB reserve
Multimode fiber POF (MM) 980/1000 µm	-

Power requirements

Operating voltage	18 ... 32 VDC, typ. 24 VDC
Galvanic isolation	yes
Current consumption	max. 190 mA
Power consumption	4.5 W
Output voltage/output current (pin6)	5 VDC +5%, -10%, short circuit-proof/10 mA

Redundancy

Redundancy functions

redundant 24 V infeed

Ambient conditions

Operating temperature	0 ºC to +60 ºC
Storage/transport temperature	-40 ºC to +70 ºC
Relative humidity	<95% (non-condensing)

Mechanical construction

Dimensions (W x H x D)	40 x 140 x 77.5 mm
Mounting	DIN rail or mounting plate
Weight	500 g
Protection class	IP 40
Housing material	die-cast zink

Approvals

Hazardous locations

ATEX Zone 2 (pending)

Scope of delivery and accessories

Scope of delivery

device, start-up instructions
