Hirschmann Expansion module MB-2T Temp 0 °C to +60 °C

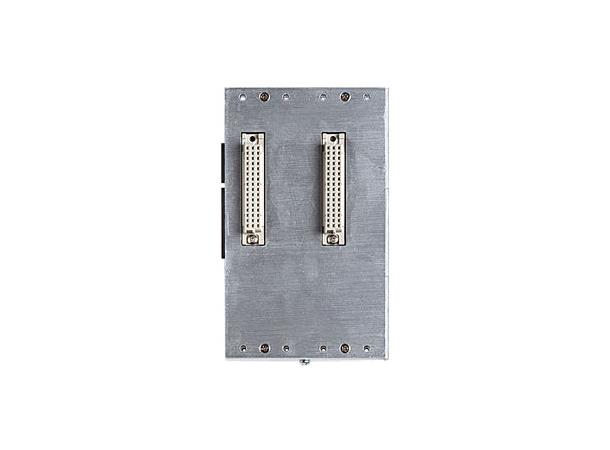

Hirschmann Expansion module MB-2T

Temp 0 °C to +60 °C

Varenr: 943 733-102

Product description

DescriptionExpansion backplane with 2 slots for
MS20/30-16 and MS4128 MICE switches
Port type and quantity2 slots integrated on backplane
(8 ports possible via media modules)
TypeMB-2T
Order No.943 733-102

Power requirements

Power consumption0 W

Ambient conditions

Operating temperature0 ºC bis +60 ºC standart ( optional -40ºC to +70ºC)
Storage/transport temperature-25 ºC to +70 ºC
Relative humidity (non-condensing)10% to 95%
MTBF1146.1 years; MIL-HDBK 217F: Gb 25 ºC

Mechanical construction

Dimensions (W x H x D)79 mm x 134 mm x 22 mm
MountingDIN Rail 35 mm
Weight150 g
Protection classIP 20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13.2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz,
10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 1 kV data line
EN 61000-4-5 surge voltagePower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC CFR47 Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Safety of industrial control equipmentcUL 508
Hazardous locationsISA 12.12.01 Class 1 Div. 2 (pending)
ShipbuildingGermanischer Lloyd, ABS, BV, DNV, LR, KR, RINA
Railway norm

EN50121-4
