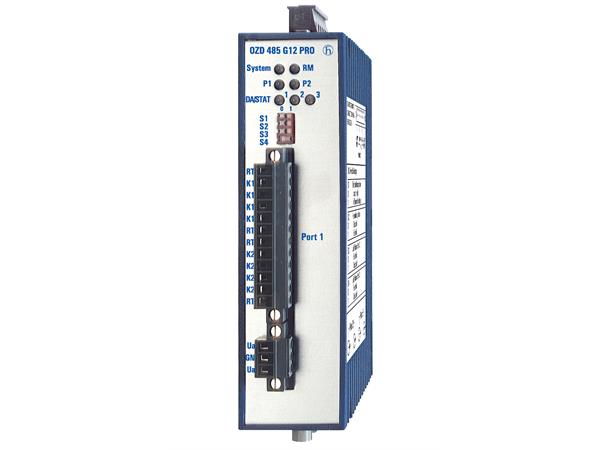

Hirschmann OZD 485 G12-1300 PRO
2 x ST, Singlemode fiber
Product description
Type:
OZD 485 G12-1300 PRO
Name:
OZD 485 G12-1300 PRO
Part Number:
943895321
Port type and quantity:
2 x optical: BFOC 2.5 (STR) socket; 1 x electrical: 12-pin terminal block
Signal Type:
RS 485
More Interfaces
Signaling contact:
7-pin terminal block
Voltage output:
3-pin terminal block
Network size - length of cable
Single mode fiber (SM) 9/125 µm:
22 km, 13 dB link budget at 1310 nm; A = 0.5 dB/km
Multimode fiber (MM) 50/125 µm:
16000 m, 18 dB link budget at 1310 nm; A = 1,0 dB/km
Multimode fiber (MM) 62.5/125 µm:
16000 m, 18 dB link budget at 1310 nm; A = 1.0 dB/km
System delay time:
1,56 us
Power requirements
Current consumption:
max. 200 mA
Input voltage range:
-7 V ... +12 V
Operating Voltage:
18 ... 32 VDC (typ. 24 VDC)
Power consumption:
max 3.5 W
Redundancy functions:
redundant ring, redundant power supply
Ambient conditions
Operating temperature:
-25-+70 °C
Storage/transport temperature:
-25-+80 °C
Relative humidity (non-condensing):
0-95 %
Mechanical construction
Dimensions (WxHxD):
35 mm x 163 mm x 119 mm
Weight:
215 g
Housing Material:
plastics
Mounting:
DIN rail
Protection class:
IP20
Approvals
Basis Standard:
EU Conformity, AUS Conformity Australia
Safety of information technology equipment:
cUL508
Hazardous locations:
ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
Scope of delivery and accessories
Scope of delivery:
device, start-up instructions
