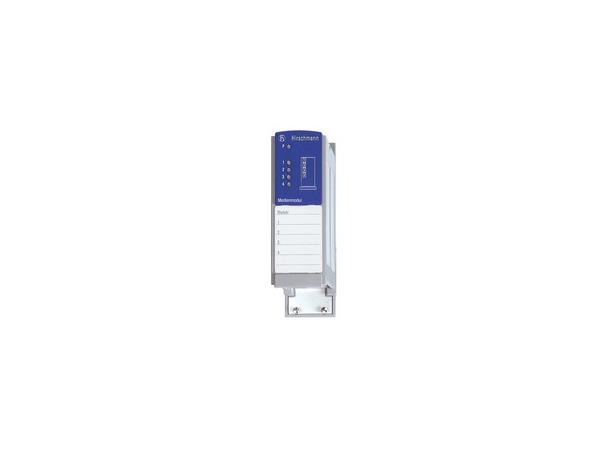

Hirschmann MM20 Modul, 4x SFPMedia modul for MICE

Product description

Description	Fast Ethernet media module for MICE Switches (MS...)
Port type and quantity	Port 1: Fast Ethernet SFP-Slot; Port 2: Fast Ethernet SFP-Slot; Port 3: Fast Ethernet SFP-Slot; Port 4: Fast Ethernet SFP-Slot
Type	MM20-Z6Z6Z6Z6SAHH
Order No.	MM20-Z6Z6Z6Z6SAHH

Network size - length of cable

Multimode fiber (MM) 50/125 µm	0 - 5000 m, 8 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 800 MHz x km; + cf. SFP LWL-module M-Fast-SFP MM
Multimode fiber (MM) 62.5/125 µm	0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km; + cf. SFP LWL-module M-Fast-SFP MM
Single mode fiber (SM) 9/125 µm	cf. SFP LWL-module M-Fast-SFP MM
Single mode fiber (LH) 9/125 µm (long haul transceiver)	cf. SFP LWL-module M-Fast-SFP LH

Power requirements

Operating voltage	Power supply via the backplane of the MICE switch
Power consumption	4.0 W

Ambient conditions

Operating temperature	0 ºC ... 60 ºC
Storage/transport temperature	-40 ºC ... 70 ºC
Protective paint on PCB	No
Relative humidity (non-condensing)	10 % ... 95 %

Mechanical construction

Dimensions (W x H x D)	38 mm x 134 mm x 118 mm
Width	38 mm
Height	134 mm
Depth	118 mm
Mounting	Backplane
Weight	n/a
Protection class	IP20

Mechanical stability

IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration	1 mm, 2 Hz - 13,2 Hz, 90 min.; 0,7g, 13,2 Hz - 100 Hz, 90 min.; 3,5 mm, 3 Hz - 9 Hz, 10 Zyklen, 1 Oktave/min.; 1g, 9 Hz - 150 Hz, 10 Zyklen, 1 Oktave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)	6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)	2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity	3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EMC emitted immunity

FCC CFR47 Part 15	FCC CFR47 Part 15 Class A
EN 55022	EN 55022 Class A

Approvals

Safety of industrial control equipment	cUL 508
Hazardous locations	ISA 12.12.01 Class 1 Div. 2

Hirschmann MM20 Modul, 4x SFP Media modul for MICE

Tilbehør

Hirschmann M-FAST SFP-LH/LC EEC, 100km

Hirschmann M-FAST SFP-SM+/LC, 65km

Hirschmann M-FAST SFP-SM/LC, 25km

Hirschmann M-FAST SFP-MM/LC EEC, 5km
