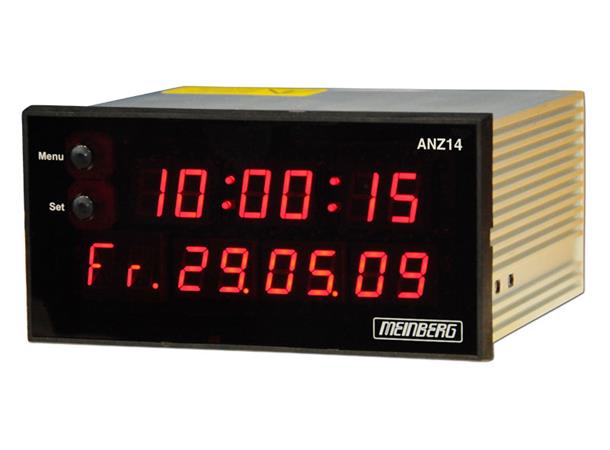

ANZ14/NET
LED display clock in panel-mount housing with the following features:
Display Design:
- 14-digit LED display for time, date and day-of-week
- digit height: 13/14mm
- display color: red
Function Specifications:
- synchronous status indicator
- variable display brightness
- two front panel push buttons for configuration
- free running accuracy: 1 x 10E-5
- one serial interface as RS232 and/or 20mA/current loop (output passive, input active) via 9pin D-Sub female connector
- Dimensions: aluminium profile case (144mm x 72mm x 132mm / width x height x depth) for panel mounting (cutouts of 140mm x 68mm) or free-standing
- integrated power supply 100 - 240VAC / 50 - 60Hz
