KEY FEATURES

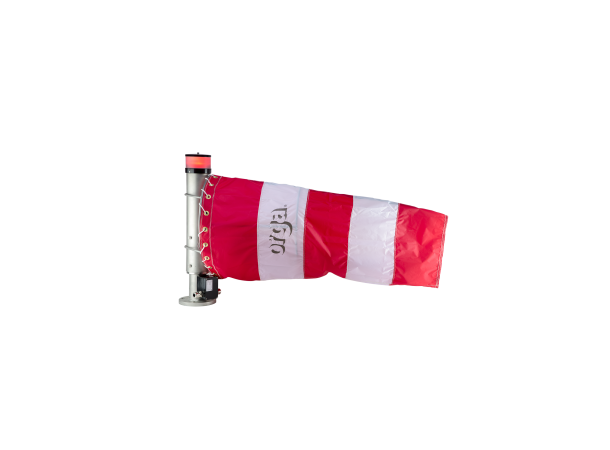

Reliable wind direction and wind-speed indication for helicopter operations
Low cost of ownership
Low power consumption
No dazzling of pilot because of internal sock illumination
No corrosion due to stainless steel 316 body
Easy to install
Various operating voltages
Fully integrated aeronautical obstacle light if required

PERFORMANCE CHARACTERISTICS

Internal windsock light colour: white
Aeronautical obstacle light colour: red
Sock type 1: Red/White/Red; 1200 mm ; standard execution
Sock type 2: Orange/White/Orange; 1200 mm ; optional
Sock type 3: Orange; 1200 mm ; optional
Sock type 4: Red/White/Red; 1800 mm; optional
Sock type 5: Orange/White/Orange; 1800 mm; optional

STANDARDS/CERTIFICATION

Complies with CAA-UK CAP 437 9th edition; Standards for Offshore Helicopter Landing Areas, chapter 4, paragraph 4.5 – Illuminated windsock
Complies with ICAO Annex 14, Volume ll; International standards and recommended practices: Aerodromes, 5th edition, 2020, chapter 5.1.1 – Wind direction indicators for elevated Heliports & Helidecks
Complies with ICAO Annex 14, volume l; Aerodrome design and operations, 9th Edition, 2022, chapter 6.2.1.2 – Type A and B low intensity obstacle light
Complies with CAA-UK CAP 437 9th edition; Standards for Offshore Helicopter Landing Areas, chapter 4, paragraph 4.31 – Low intensity 10 cd obstacle light
Complies with CAA-UK CAP 168, Licensing of Aerodromes edition 12, 2022, chapter 4, table 6A.1 Group A. Low intensity 10 cd obstacle light

ELECTRICAL CHARACTERISTICS

Operating voltage: see table
Power consumption: see table
Connection details: max. 4 mm²; two M25x1.5 entries
Earth connection: internal max. 4 mm² and external M8

PHYSICAL CHARACTERISTICS

Dimensions (L x W x H): 609 x 460 x 677 mm
Weight: 20 kg
Design degree of protection: IP66
Operating temperature range: -40°C to +60°C
