• 350 MHz or 500 MHz with 5 GS/s
• 10-bit resolution (14 bits using enhanced resolution)
• 2 GS ultra-deep capture memory
• Function/arbitrary waveform generator included
• Compact, portable and USB powered
• 40 serial protocol decoders included as standard
• Segmented memory, persistence and fast waveform updates
• Advanced math, measurements, masks and digital triggering
• PicoScope 7 for Windows®, Mac® & Linux® with free updates
• Support for LabView®, MATLAB® and writing your own code
• 5-year warranty and free technical support

Product overview

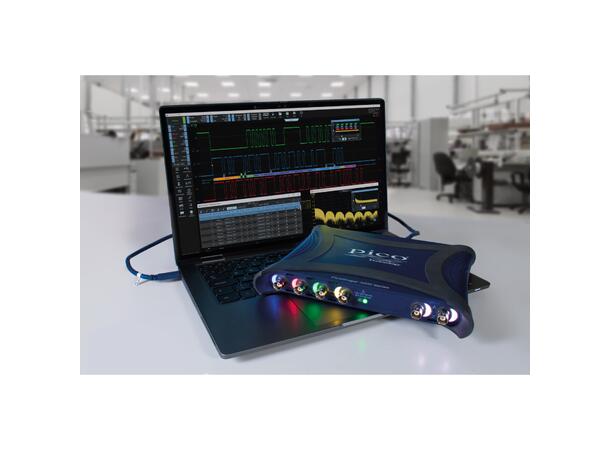

Once again, Pico is redefining PC-based oscilloscopes with up to 500 MHz bandwidth and 5 GS/s in a compact, portable USB-powered package. The PicoScope 3000E Series is a range of USB-powered PC oscilloscopes which are small, light, portable and provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move. Supported by the advanced PicoScope 7 Test and Measurement software, the PicoScope 3000E Series enables the rapid cost-effective debug and performance validation of complex analog and power electronic designs. It also offers an ideal package for many other applications including embedded systems design, research, test, education, service and repair.
