Keithley 2260B Progr. DC Power Supplies

360 to 1080W, to 800V or 108A

Varenr: Keithley 2260B serie
Output voltage
Output power
Fra 23 050,00

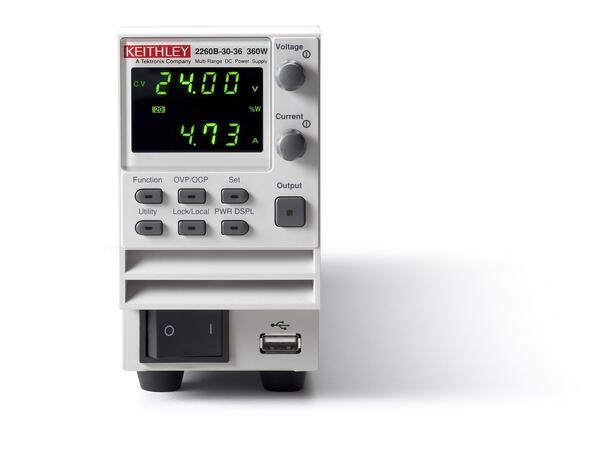

Keithley Series 2260B Programmable DC Power Supplies

Source a wide range of voltages and currents with the 360 W, 720 W, or 1080 W Series 2260B Programmable DC Power Supplies. Choose from 12 versions with voltage output of 30 V, 80 V, 250 V, or 800 V. The 360 W versions can output current of 36 A, 13.5 A, 4.5 A, or 1.44 A; the 720 W models can output 72 A, 27 A, 9 A, or 2.88 A; and the 1080 W instruments can output 108 A, 40.5 A, 13.5 A, or 4.32 A. This wide range of output voltages and current, combined with multiple interface choices, makes the Series 2260B ideal for use in a wide range of applications, including research and design, quality control, and production test.

Key Features

  •  360 W, 720 W, and 1080 W versions with voltages up to 800 V and currents up to 108 A
  • Programmable voltage or current rise and fall times prevents damage to low impedance loads from inrush current
  • Constant current priority setting reduces voltage and current overshoot when powering LEDs
  • Programmable internal resistance simulates battery output
  • Choose from analog control, USB, LAN, or optional GPIB interface for automated control
  • Fit six 71 mm wide 360 W units or three 142 mm wide 720 W units or two 214 mm wide 1080 W units in a standard rack width to minimize bench and test system space
