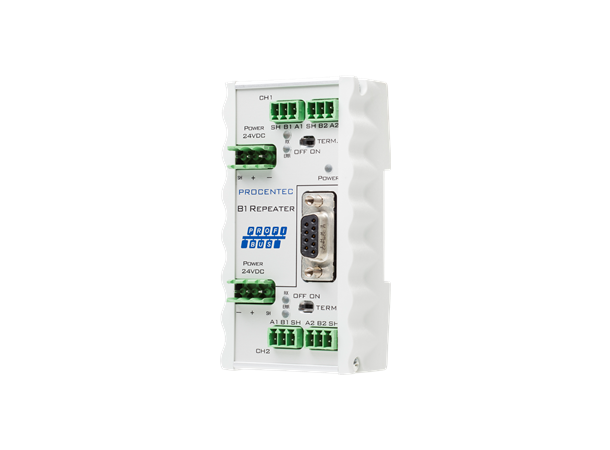

The advanced 12 Mbps core of the B1 is comparable to the ProfiHub: it can be cascaded without limitations and has increased RS 485 strength. Furthermore, every channel has on-board switchable termination and is able to drive 31 devices. The removable screw terminals of the PROFIBUS interface are pinned-out in a way that reversed mounting of the repeater does not impact existing wiring. A DB9 connector is provided to connect diagnostic tools. The redundant power supply increases reliability of the application.

This compact and easy to use network component complies with the requirements of the demanding modern industry to increase the PROFIBUS cable length and amount of connected devices.
