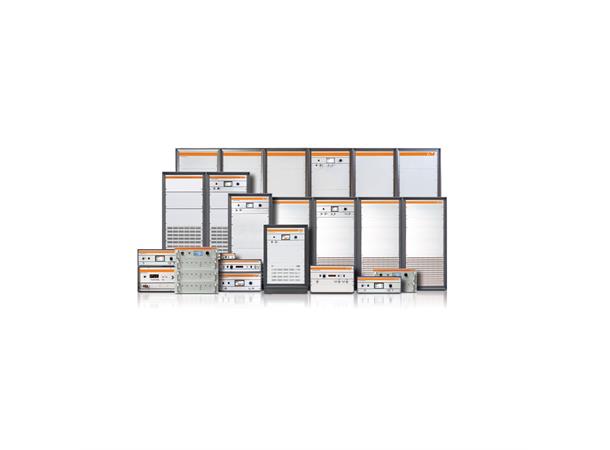

RF Solid State Amplifiers
All RF solid–state amplifiers have modulation capability that will faithfully reproduce AM, FM or Pulse Modulation appearing on the input
signal for use in the most demanding EMC applications. These self– contained, broadband, completely solid–state amplifiers are designed
for applications requiring the ultimate in output power over a wide instantaneous bandwidth with high gain.
Rated Output Power Into 50O:
4 kHz – 100 kHz: 10 W min. rising to 100 W min. at 100 kHz
100 kHz – 400 MHz: 125 W, typ.; 100 W min.
Input for Rated Output 1 milliwatt max.
Power Output @ 3 dB Compression Into 50O:
4 kHz – 100 kHz: 10 W min. rising to 100 W min. at 100 kHz
100 kHz – 400 MHz: 125 W typ.; 100 W min.
Power Output @ 1 dB Compression Into 50O:
4 kHz – 100 kHz: 10 W min. rising to 75 W at 100 kHz
100 kHz – 400 MHz: 85 W typ.; 75 W min.
Flatness ±1 dB typ. / ±1.5 dB max, 100 kHz – 400 MHz
Frequency Response 4 kHz–400 MHz instantaneously
Gain (at max. setting)
50 dB min., 100 kHz – 400 MHz; <50 dB below 100 kHz
Gain Adjustment (continuous range) 20 dB min.
Input Impedance 50 ohms, VSWR 2:1 max.
Output Impedance 50 ohms, nominal
Mismatch Tolerance*
100% of rated power without foldback. Will operate without damage or oscillation with any magnitude and phase of source and load impedance.
Harmonic Distortion
Minus 20 dBc max. at 75 W,
Minus 30 dBc typical at 50 W (1 – 400 MHz)
Spurious Minus 73 dBc typ.
Third Order Intercept Point 55 dBm typ.
Noise Figure 8 dB typ.
Primary Power 100 – 240 VAC, 50 / 60 Hz, 500 W
Connectors
RF Input Type N female
RF Output Type N female
Remote Interfaces
IEEE–488 24–pin female
RS–232 9–pin Subminiature D female
Fiber optic ST Conn Tx and Rx RS–232
USB 2 Type B
Ethernet RJ–45
Safety Interlock 15–pin Subminiature D
Cooling Forced air (self–contained fans)
Weight
With cabinet 18.5 kg (41 lb.)
Without cabinet 10.4 kg (23 lb.)
Size (WxHxD)
With cabinet 50.3 x 15.5 x 55.1 cm / 19.8 x 6.1 x 21.7 in.
Without cabinet 48.3 x 13.2 x 55.1 cm / 19 x 5.2 x 21.7 in.
Export classification EAR99
