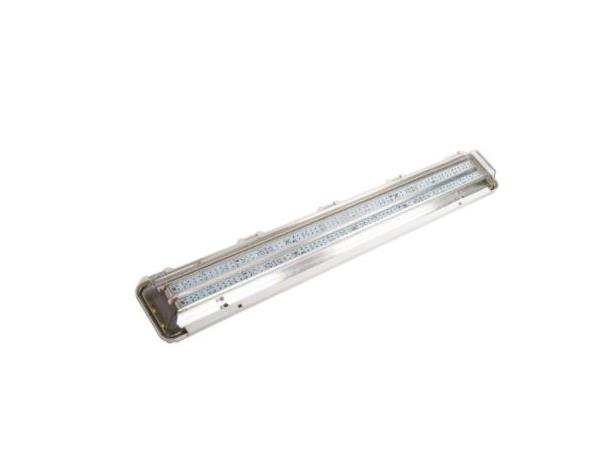

Chalmit Protecta III LED 02 742mm PRGE/02L/LE/SC/LBE/4K

Chalmit Protecta III LED 02 742mm

PRGE/02L/LE/SC/LBE/4K

Varenr: PRGE/02L/LE-CL4

Protecta III LED (PRGE - Standard & Emergency)

by Chalmit Lighting

The Protecta III LED Linear delivers to the Industry unparalleled performance and photometric's bringing forward all the recognised benefits of the Protecta range; a proven rpbust enclosure, excellent IP and low maintenance features. Expected useful life to 70% of the initial lumens (L70) is a market leading 120,000 hours at 25°C. With fully replaceable LED strips and driver we deliver a unique product with effective long term maintenance capability.

  • Highly Energy efficient.
  • Full length easy access diffuser clamp.
  • Screwless mains terminals.
  • DTS-01 deluge tested.

The Protecta III LED Luminaires added features finds high application in the field of Industrial and Oil & Gas Industry.



Type of protection

Ex e mb q (Increased safety Encapsulation Powder filling)

ATEX Classification

Group II Category 2 GD

Area Classification

Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14

Certificate

EC Type Examination Certificate

    Baseefa04ATEX0220

IECEx Certificate of Conformity

     IECEx BAS09.0017

Coding

Ex e mb q IIC T4 Gb

Ex tb IIIC T95°C Db IP6X

Enclosure

GRP body with polycarbonate cover

Geartray

Aluminium

Entry

4 x M20 cable entries, 2 at each end

Termination

3 core 4mm² max conductor with looping and 16A rating through wiring (4 core on Emergency)

Installation

2 x M8 moulded-in stainless steel bushes located on the rear of the body

Control Gear

Electronic Driver

Colour Temperature (CCT)

6000K (Cool Daylight)

Maintenance

Quick release diffuser clamp and hinged cover

Battery

Internal Ni-Cd (6V) (Emergency version only)

Emergency Duration

90 mins (30% output)

Ingress Protection

IP66/67 to EN 60529

Surge Protection

4kV

Electrical Supply

220-254V AC, 50/60Hz






Std. Cat No.

Delivered output

Power Consumption

TClass

T°C (Dust)

Ambient °C

Weight

PRGE/02L/LE

2178 lm

30W

T4

85

-40 to +55

7.9kg

PRGE/05L/LE

4607 lm

60W

T4

85

-40 to +55

11.5kg

PRGE/02L/LE/EM

2178 lm

32W

T4

85

-25 to +55

8.9g

PRGE/05L/LE/EM

4607 lm

64W

T4

85

-25 to +55

13.0kg

Note: Installed Protecta III Fluorescents can be upgraded to LED by ordering Retrofit Geartray PRRE




Options – Suffix to catalogue No.

/M25

M25 cable entries

/LBE

Looping both sides

/EL

Extra live termination facility (to match emergency circuit)

/120

Specific voltage (110-130V)

/GIS

Geartray isolation switch (Gas coding becomes - Ex d e mb q IIC)

/OD

Opaque polycarbonate diffuser

/3H

3 hour battery duration (15% output)

/4K

4000K (Neutral White) LED Strips

/SC

Screwed connection terminal block (up to 6mm² conductors)

/LT

Low temperature version (Emergency ambient becomes -40°C to +55°C)**

/LTT

Low temperature version with battery temperature regulator (Emergency ambient becomes -40°C to +45°C)

/BP

Brass plugs

/SE

Spigot entry (standard model only)
