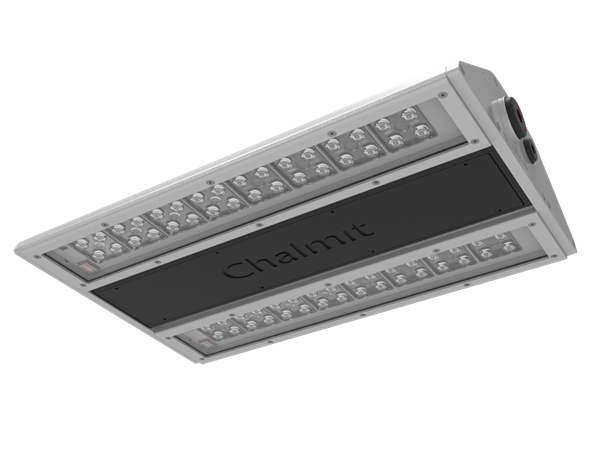

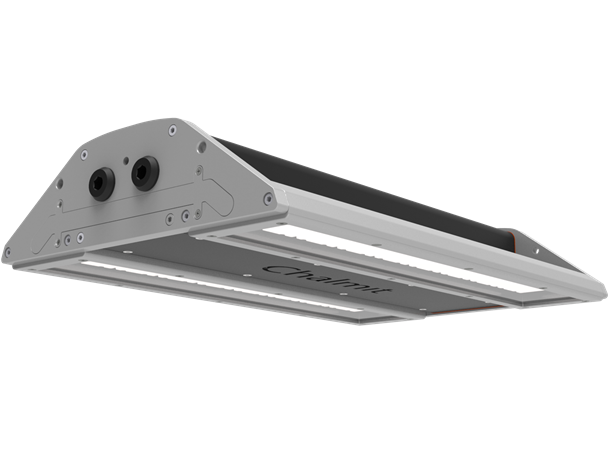

Protecta X
by Chalmit Lightning
The next generation in LED linear luminaires, the Protecta X’s
revolutionary design puts LED at the centre to provide the
performance of a 4ft linear in a lightweight and slimline package.
With a robust enclosure and excellent IP, the Protecta X is suitable
for use in the world’s most arduous environments. Expected useful
life to 70% of the initial lumens (L70) is >200,000 hours at 25°C,
with an incredible 90,000 maintenance free hours at 60°C. For a
luminaire with the longest life, the highest output and marketleading efficacy, choose the Protecta X.
Mounting Options
Ceiling. Wall. Suspended. Pole. Handrail.
Product Details
| General |
| ATEX Classification |
Group II Category 2 GD |
| Application |
Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 |
| Certificate |
- EU Type Examination Certificate: CML18ATEX3358X
- IECEx Certificate of Conformity: IECEx CML 18.0167X
|
| Coding |
Ex db eb mb op is IIC T4 Gb, Ex mb op is tb IIIC T85°C Db IP6X. |
| Enclosure |
Marine grade aluminium body with polycarbonate diffuser. Driver enclosure with epoxy powder finish (RAL 9005) |
| Geartray |
Aluminium |
| Entry |
4 x M20 cable entries - 2 at each end [3 cable entries on Emergency with battery stick] |
| Termination |
3 core 4mm² max conductor [4 core on Emergency] with looping one end and 16A rating through wiring |
| Installation |
2 x M8 mounting points located on the rear of the body |
| Control Gear |
Electronic Driver |
| Colour Temperature (CCT) |
5000K (Cool White) |
| Colour Rendering Index (Ra) |
>70 |
| Maintenance) |
Front access panel with Torx screws |
| LED Lifetime @ 60°C Ambient |
L70 > 200,000hrs |
| Maintenance Free Lifetime @ Ambient |
120,000hrs @ 25°C; 90,000hrs @ 60°C |
| Battery |
Swappable Ni-MH (6V) battery stick [Emergency version only] |
| Emergency Duration |
90 mins (25% output) |
| Ingress Protection |
IP66/67 to EN 60529 |
| Surge Protection |
4kV |
| Electrical Supply |
- 110-277V AC, 50/60Hz
- 127-250V DC
|
| Std. Cat No. |
Delivered Output |
Power Consumption |
Tclass |
T°C(Dust) |
Ambient °C |
Weight |
|
PRXB/02L/LE
|
2600 lm |
16W |
T4 |
85 |
-40 to +60 |
7.1kg |
|
PRXB/05L/LE
|
5200 lm |
36W |
T4 |
85 |
-40 to +60 |
9.1kg |
|
PRXB/02L/LE/EM
|
2600 lm |
18.5W |
T4 |
85 |
-25 to +60 |
7.6kg |
|
PRXB/05L/LE/EM
|
5200 lm |
38.5W |
T4 |
85 |
-25 to +60 |
9.6kg |
| Options - Suffix to Catalogue No. |
|
/M25
|
M25 cable entries |
/3H
|
3 hour battery duration (12.5% output) |
|
/LBE
|
Looping both sides [Non Emergency only] |
/4K
|
4000K (Neutral White) LED Strips |
|
/EL
|
Extra live termination facility
((to match emergency circuit) |
/SC
|
Screwed connection terminal block(up to 6mm² conductors) |
|
/EMI
|
Internal battery pack [replace /EM with /EMI] |
/BNI
|
atteries not included [Emergency version only |
|
/NST
|
Non Self Test [Emergency version only] |
/DM
|
DALI Dimmable driver |
|
/ASL
|
Asymmetric along Length |
/M
|
Medium Beam |
|
/ASW
|
Asymmetric along Width [05L version only |
/BP
|
Zinc plated brass plugs |
| Accessories - order separately |
| Pole mounting bracket assembly (38-42mm diameter poles) |
SPOL4-100001 |
| Pole mounting bracket assembly (48-52mm diameter poles) |
SPOL4-100002 |
| Pole mounting bracket assembly (58-62mm diameter poles) |
SPOL4-100003 |
| Hook type ceiling bracket assembly |
SPRO4-0005 |
| Flush mounted wall bracket assembly |
SPRO4-0006 |
| Ceiling bracket assembly |
SPRO4-0002 |
| Standard wall mounting outreach bracket (use with SPOL4-100001) |
NPRO4-0008 |
| Eyebolt mounting assembly |
SPRO5-0005 |
