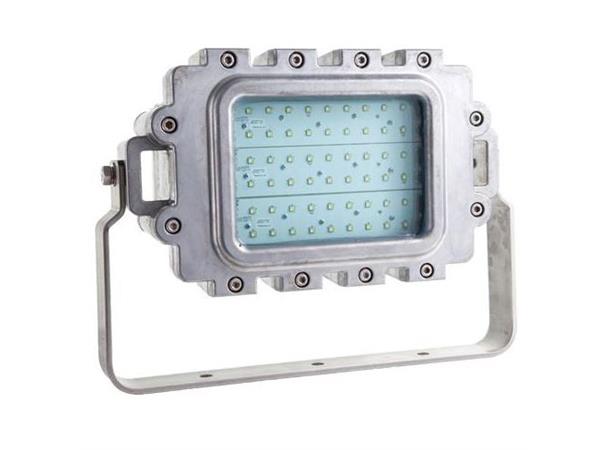

ScotiaEx
by Chalmit Lighting
The ScotiaEx is a low energy floodlight with an instant on output delivering 110,000 maintenance free hours at 25 °C. Its excellent temperature range of -50°C to +55°C makes it a global lighting solution providing high output lighting at extreme temperatures.
- Instant on crisp white light output.
- Highly Energy Efficient.
- 110,000 maintenance free hours at 25°C.
- Lower power consumption than HID lamps.
- Low temperature applications to -50°C.
|
Type of protection
|
Ex d e (Flameproof, Increased Safety)
Ex tb (Dust Protected Enclosure)
|
|
ATEX Classification
|
Group II Category 2 GD
|
|
Area Classification
|
Zone 1 and Zone 21 areas to EN 60079-10-1
and EN 60079-10-2 with installation to
EN 60079-14 (Gas Groups IIA, IIB and H2)
|
|
Certificate
|
EC Type Examination Certificate
CML 14ATEX1086X
IECEx Certificate of Conformity
IECEx CML 14.0034X
|
|
Coding
|
Ex d e IIB (+ H2 option) T* Gb
Ex tb IIIC T** °C Db IP6X
Refer to table for T rating and Ambient
|
|
Enclosure
|
Aluminium Alloy LM6
|
|
Entry
|
2 x M20 cable entries
|
|
Termination
|
3 core 6mm² max. conductor with looping
|
|
Installation
|
Stirrup mounting bracket
|
|
Control Gear
|
Electronic Driver
|
|
Colour Temperature (CCT)
|
5000K (Cool White)
|
|
Ingress Protection
|
IP66
|
|
Surge Protection
|
4kV line to line, 6kV line to earth
|
|
Electrical Supply
|
120-277V AC 50/60Hz 127-250V DC
|
|
Std. Cat No.
|
Delivered Output
|
Power Consumption
|
TClass
|
T°C (Dust)
|
Ambient °C
|
Weight
|
|
SCOD/07L/LE
|
6043 lm
|
T8
|
T6
T5
|
85
100
|
-20 to +40
-20 to +55
|
21kg
|
|
SCOD/08L/LE
|
8850 lm
|
T8
|
T6
T5
|
85
100
|
-20 to +40
-20 to +55
|
21kg
|
|
SCOD/11L/LE
|
11388 lm
|
T8
|
T6
T5
|
85
100
|
-20 to +40
-20 to +55
|
21kg
|
|
SCOD/12L/LE
|
12581 lm
|
T8
|
T6
T5
|
85
100
|
-20 to +40
-20 to +55
|
21kg
|
Note: For alternative beam options, please contact us.
Options – Suffix to catalogue No.
|
/M25
|
M25 cable entries
|
|
/EP
|
Painted
|
|
/ADE
|
Amber LEDs
|
|
/LT
|
Low temperature to -50°C (Gas groups llA and llB only)
|
|
/LT/H2
|
Low temperature to -50°C (Gas groups llB and H2)*
|
|
/P
|
PTFE
|
