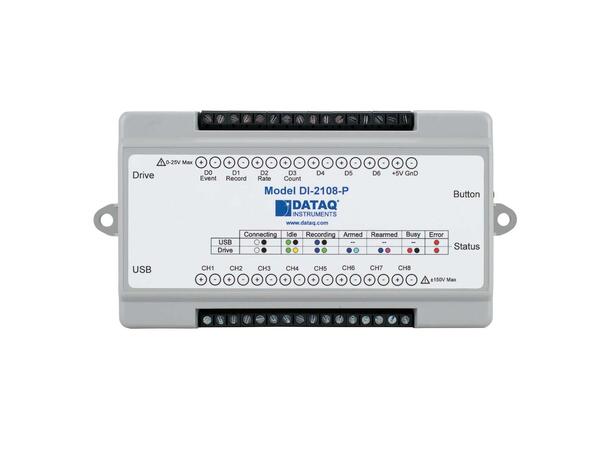

Dataq Model DI-2108-P
USB DAQ and Stand-alone Data Logger, 32GB USB Flash Drive, 16-bit resolution, 160,000 S/s Throughput, and Programmable gain ranges of ±2.5, ±5, ±10, 0-5, 0-10 Volts

Description
DI-2108-P High Speed USB Data Acquisition and Data Logger System with Windaq software and 32GB USB flash drive. Features 8 differential analog input channels, 16-bit measurement resolution, a full scale measurement ranges of ±2.5, ±5, ±10, 0-5, and 0-10 Volts, and stand-alone data recording to removable USB thumb drive. Includes a DI-2108-P instrument, a 6-foot USB cable, a screwdriver for signal connections, an NIST-traceable Calibration Certificate, and a 32GB USB flash drive with WinDaq software (downloadable at run.dataq.com) and the Calibration Certificate (.pdf).

Model DI-2108-P delivers premium analog performance at a surprisingly affordable price. Eight analog input channels provide differential measurement flexibility and programmable ±2.5, 5, 10 V bipolar and 0-5 and 0-10 V unipolar ranges per channel. The differential input configuration provides noise rejection, easily adapts to single-ended signal sources, and is protected up to ±150 V dc or peak ac so that inevitable measurement mishaps will not harm the instrument. Bipolar ranges measure signals above and below zero, while resolution is effectively doubled on unipolar ranges. The front end feeds a fixed resolution, 16-bit ADC. The maximum sampling throughput rate of the DI-2108-P is 160 kHz.

The DI-2108-P provides 7 digital ports, each configurable as an input or a switch. Input protection is provided to 25 V. When activated as inputs two ports allow dual functionality as discrete inputs, or programmed as a counter or rate input. The rate input features a 50 kHz maximum measurement allocated over twelve programmable measurement ranges (10 Hz to 50 kHz full scale.) The counter input provides 16-bit resolution and a terminal count value of 65,535. The discrete, counter, and rate inputs are members of the same internal scan list used by the analog input channels. This means that all enabled elements are acquired synchronously, which allows meaningful comparisons between analog and digital channels. For example, the rate input measuring engine speed allows rpm data to be acquired in lock-step with analog data. Configured as a switch a digital port can be used to control external loads up to 25 V @ 100 mA, and the switch can be controlled asynchronously without interfering with the scanning process.

• Includes a DI-2108-P instrument, a 6-foot USB cable, a screwdriver for signal connections, and a 32GB USB flash drive containing an NIST-traceable Calibration Certificate and WinDaq software (also downloadable at run.dataq.com).
• Provided with WinDaq/Lite Software which records up to four channels at any sampling rate (purchase WinDaq/Unlock to record all channels, or to synchronize multiple units)
• Stand-alone capability records data to USB thumb drive (Unlock Code required to record all channels to USB thumb drive - See Accessories; Unlock code NOT available for units prior to February 2020)
• Up to 160 kHz sample throughput rate
• 16-bit analog-to-digital resolution (use the Resolution Calculator to determine how small a change you can detect)
• Programmable ranges: ±2.5, ±5, ±10, 0-5, 0-10 Volts
• 0-5 Measurement Range best-suited for 4-20mA current measurements
• Unipolar gain ranges provide better resolution
• Eight armored analog differential inputs
• Up to ±150 V without damage
• 80 dB common mode rejection
• Seven digital ports
• Programmable per port as input or switch
• Support for rate measurements to 50 kHz
• Support for 16-bit counter
• Supports ChannelStretch™ multi-unit synchronization:
• Up to sixteen instruments
• Up to 480 kHz throughput
• Up to 128 analog channels and 112 digital ports
• Unlock code required per device - purchase under Accessories tab
• Software support includes ready-to-run WinDaq/Lite software and documented protocol for software development in all operating systems
• Use HMP60 Probe for Temperature and Humidity Measurements
• .Net Class with Example program
• CE Approved
