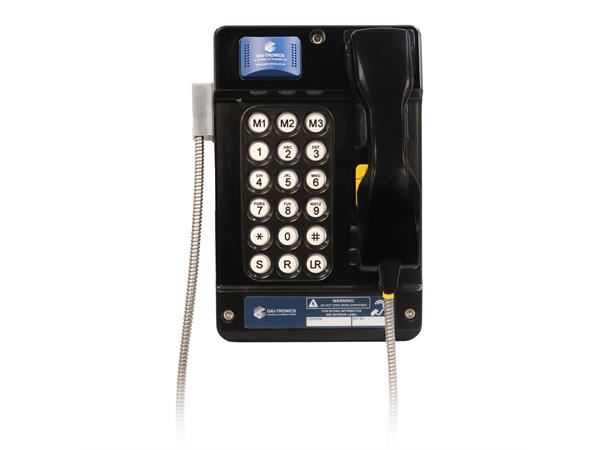

Auteldac 6
Auteldac 6 is an ATEX and IECEx Zone 1 & Zone 21 certified VoIP telephone, providing simple network connectivity extending SIP access to hazardous area industrial atmospheres and environmental extremes.
Features include:
IEC Ex / ATEX certified for safe operation in hazardous areas
Carbon loaded glass filled polyester body - rugged and corrosion
free.
Weather resistant up to IP66
Certified for use in ambient temperatures of -40°C to +60°C (NB
refer to certification details)
Rugged handset with curly cord or armoured stainless steel cord.
Programmable, volt-free contact output
Automatic outgoing call diversion (memory list)
Real-time alarm reporting via SNMP
Power over Ethernet 802.3af compatible (spare pair only)
Configurable via web page, SNMP or configuration file
| Technical
Data |
|
| Enclosure |
Black carbon loaded glass-filled
polyester |
| Handset |
PC/ABS handset |
| Polyurethane

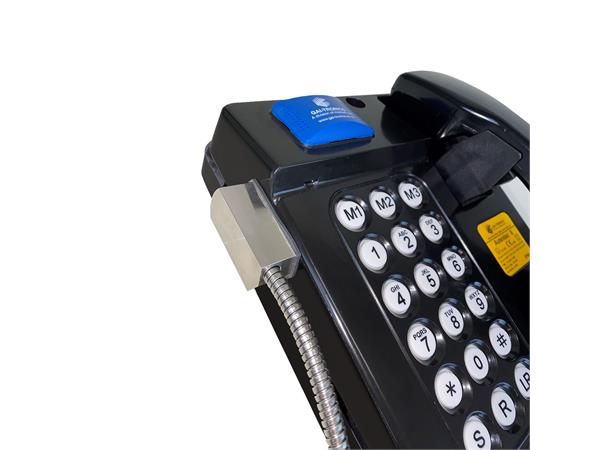

coiled or spiral 316 stainless steel cord. |
| Cord
length options: |
•
Standard coiled cord length 320mm/1.25ft extends
to 1.5m/5ft |
| •
Extended coiled cord length 1.5m/5ft extends to 3m/10ft |
| •
Standard stainless cord length 745mm/29in |
| •
Extended stainless cord length 3m/10ft |
| Keypad |
Weather-sealed tactile keypad |
| Certified
operating temperature |
-40°C (F) to +60°C (+140°F) |
| IP
Protection |
IP66 |
| Connection
type |
Screw Terminal up to 4mm2 /
11AWG |
| Network
Minimum Requirements |
10/100BaseT |
| Power
Supply |
a) External 24V min, 48V max dc
or |
b) IEEE
Compliant Power-Over-Ethernet (PoE).
Alternative b) power on spare pairs only, not data pair.
Draws up to 3.5W. |
| Call
Setup |
Session Initiation Protocol
(SIP) (RFC 3261 compliant) |
| Configuration |
Via configuration file or on-board password
protected web page server. Static IP
address or DHCP
provisioning. |
| Monitoring |
Automatic fault reporting via Syslog
messaging
or SNMP |
| Audio
Path Testing |
Allows remote testing
of handsets, to verify that a phone is functioning acoustically. Can be run
on demand or on a scheduled basis, reporting its results via Syslog and/or
SNMP |
| External
I/O |
Single Relay contact
pair rated for external beacon or sounder. User configurable activation e.g.
on ringing cadence. Contact rating 5Amps @250 V ac max. |
| Ringing |
User configurable
output level via configuration file or web page, up to 90db @ 1 metre
typical. |
| Weight |
Approx. 3.5 kg (7.7lbs) |
