Application
Outdoor or indoor use.
For use with single wire armour ‘W’, wire braid ‘X’, aluminium strip armour ‘Y’ and steel tape armour ‘Z’ elastomer and plastic insulated cables.
Features
Provides armour clamping using
one clamping arrangement
for all armour/braid types.
Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.
Materials & Finishes

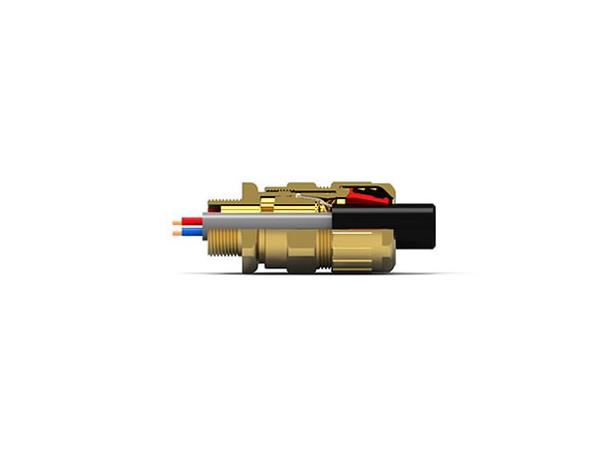

The 151/RAC cable gland is manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium. Brass NPT entries are nickel plated as standard.
Technical Data
-
Construction and Test Standards:
EN 50262, BS 6121 : Part 1 Type CW, CX, CY and CZ.
-
Ingress Protection:
IP66 to IEC/EN 60529.
-
Operating Temperature Range:
-60°C to +100°C
-
Deluge Protection to:
DTS01 (Deluge seal optional).
-
Assembly Instruction Sheet:
AI 393.
| CABLE GLAND SELECTION TABLE |
Size
Ref. |
Entry Thread
Size |
Cable Acceptance Details |
‘G’
Compressed
Length |
Hexagon
Dimensions |
| Metric |
NPT
* |
Inner Sheath'A' |
Outer Sheat'B' |
Armour / Braid ‘C’ |
Across
Flats |
Across
Corners |
| Standard |
Option |
Max. |
Min. |
Max. |
Orientation 1 |
Orientation 2 |
| Os |
M20² |
½" |
- |
8.0 |
5.5 |
12.0 |
0.8/1.25 |
0.0/0.8 |
52.0 |
24.0 |
26.5 |
| O |
M20² |
½" |
- |
11.9 |
9.5 |
16.0 |
0.8/1.25 |
0.0/0.8 |
52.0 |
24.0 |
26.5 |
| A |
M20 |
¾" |
½" |
14.3 |
12.5 |
20.5 |
0.8/1.25 |
0.0/0.8 |
53.0 |
30.0 |
32.5 |
| B |
M25 |
1" |
¾" |
20.2 |
16.9 |
26.0 |
1.25/1.6 |
0.0/0.7 |
69.5 |
36.0 |
39.5 |
| C |
M32 |
1¼" |
1" |
26.5 |
22.0 |
33.0 |
1.6/2.0 |
0.0/0.7 |
64.0 |
46.0 |
50.5 |
| C2 |
M40 |
1½" |
1¼" |
32.5 |
28.0 |
41.0 |
1.6/2.0 |
0.0/0.7 |
68.3 |
55.0 |
60.6 |
| D |
M50 |
2" |
1½" |
44.4/42.3¹ |
36.0 |
52.6 |
1.8/2.5 |
0.0/1.0 |
79.0 |
65.0 |
70.8 |
| E |
M63 |
2½" |
2" |
56.3/54.3¹ |
46.0 |
65.3 |
1.8/2.5 |
0.0/1.0 |
78.9 |
80.0 |
88.0 |
| F |
M75 |
3" |
2½" |
68.2/65.3¹ |
57.0 |
78.0 |
1.8/2.5 |
0.0/1.0 |
83.7 |
95.0 |
104.0 |
| G |
M80 |
3½" |
- |
72.0 |
75.0 |
89.5 |
2.0/3.5 |
0.0/1.0 |
95.6 |
106.4 |
115.0 |
| H |
M90 |
3½" |
- |
80.0 |
75.0 |
89.5 |
2.0/3.5 |
0.0/1.0 |
95.6 |
115.0 |
130.0 |
| J |
M100 |
4" |
- |
90.0 |
88.0 |
104.5 |
2.5/4.0 |
0.0/1.0 |
95.6 |
127.0 |
142.0 |
All dimensions in millimetres (except * where dimensions are in inches).
¹Smaller value is applicable when selecting reduced NPT entry option.
²Sizes Os and O are available with an M16 thread size. For O size with M16 thread, the maximum cable outer sheath diameter is 10.9mm
|
