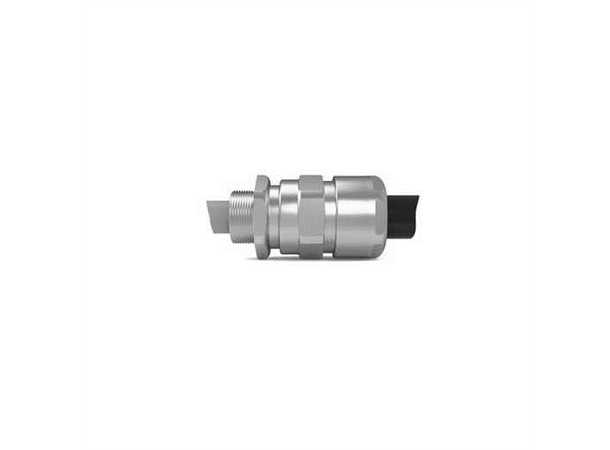

General
|
Application
|
Suitable for use in mining applications.
|
|
Ingress Protection
|
|
|
Material
|
Brass (standard); Nickel Plated Brass; 316 Stainless Steel or Aluminium; Brass NPT entries are nickel plated as standard
|
|
Operating Temparature Range Celcius
|
-60°C to +80°C
|
|
Series
|
Group I Mining Cable Glands
|
|
Type
|
-
Flameproof Exdb
-
Increased Safety Exeb
|
Certifications and Compliance
|
Certified Listed
|
-
IEC/EN 60079-0
-
IEC/EN 60079-1
-
IEC/EN 60079-7
|
|
IECEx File Number
|
IECEx BAS 08.0112X
|
|
IP Rating
|
|
|
Industry Standard(s)
|
-
IEC/EN 60079-0
-
IEC/EN 60079-1
-
IEC/EN 60079-7
|
| CABLE GLAND SELECTION TABLE |
Size
Ref. |
Entry Thread
Size |
Cable Acceptance Details |
‘G’
Compressed
Length |
Hexagon
Dimensions |
| Metric |
NPT
* |
Inner Sheath'A' |
Outer Sheat'B' |
Armour / Braid ‘C’ |
Across
Flats |
Across
Corners |
| Standard |
Option |
Standard Seal |
Alternative Seal (S) |
Min. |
Max. |
Orientation 1 |
Orientation 2 |
| Os |
M20² |
½" |
- |
3.2 |
8.0 |
- |
- |
5.5 |
12.0 |
0.8/1.25 |
0.0/0.8 |
52.0 |
24.0 |
26.5 |
| O |
M20² |
½" |
- |
6.5 |
11.9 |
- |
- |
9.5 |
16.0 |
0.8/1.25 |
0.0/0.8 |
52.0 |
24.0 |
26.5 |
| A |
M20 |
¾" |
½" |
10.0 |
14.3 |
9.0 |
13.4 |
12.5 |
20.5 |
0.8/1.25 |
0.0/0.8 |
53.0 |
30.0 |
32.5 |
| B |
M25 |
1" |
¾" |
13.0 |
20.2 |
9.5 |
15.4 |
16.9 |
26.0 |
1.25/1.6 |
0.0/0.7 |
59.5 |
36.0 |
39.5 |
| C |
M32 |
1¼" |
1" |
19.5 |
26.5 |
15.5 |
21.2 |
22.0 |
33.0 |
1.6/2.0 |
0.0/0.7 |
64.0 |
46.0 |
50.5 |
| C2 |
M40 |
1½" |
1¼" |
25.0 |
32.5 |
22.0 |
28.0 |
28.0 |
41.0 |
1.6/2.0 |
0.0/0.7 |
68.3 |
55.0 |
60.6 |
| D |
M50 |
2" |
1½" |
31.5 |
44.4/42.3¹ |
27.5 |
34.8 |
36.0 |
52.6 |
1.8/2.5 |
0.0/1.0 |
79.0 |
65.0 |
70.8 |
| E |
M63 |
2½" |
2" |
42.5 |
56.3/54.3¹ |
39.0 |
46.5 |
46.0 |
65.3 |
1.8/2.5 |
0.0/1.0 |
78.4 |
80.0 |
88.0 |
| F |
M75 |
3" |
2½" |
54.5 |
68.2/65.3¹ |
49.5 |
58.3 |
57.0 |
78.0 |
1.8/2.5 |
0.0/1.0 |
83.7 |
95.0 |
104.0 |
| G |
M80 |
3½" |
- |
67.0 |
73.0 |
- |
- |
75.0 |
89.5 |
2.0/3.5 |
0.0/1.0 |
95.6 |
106.4 |
115.0 |
| H |
M90 |
3½" |
- |
67.0 |
77.6 |
- |
- |
75.0 |
89.5 |
2.0/3.5 |
0.0/1.0 |
95.6 |
115.0 |
130.0 |
| J |
M100 |
4" |
- |
75.0 |
91.6 |
- |
- |
88.0 |
104.5 |
2.5/4.0 |
0.0/1.0 |
95.6 |
127.0 |
142.0 |
All dimensions in millimetres (except * where dimensions are in inches).
¹Smaller value is applicable when selecting reduced NPT entry option.
²Sizes Os and O are available with an M16 thread size. For O size with M16 thread, the maximum cable outer sheath diameter is 10.9mm
|
