General Information

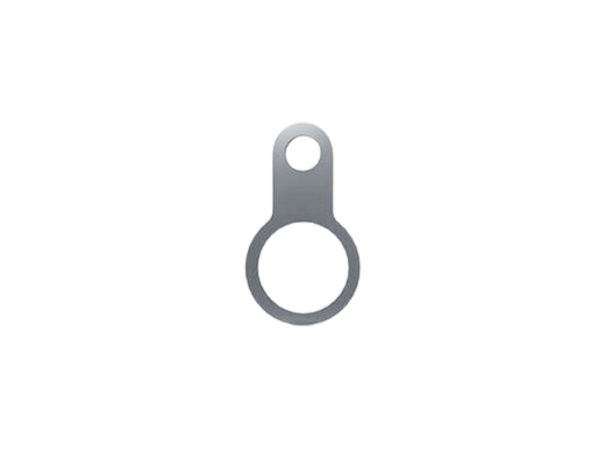

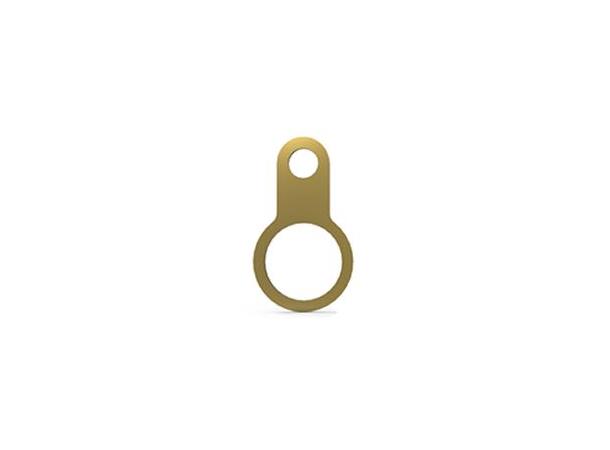

Provides an earth bond attachment for a cable gland.
Stainless Steel earth tags are available, but dimensions may differ slightly to those stated in the selection table. Please contact Hawke Technical Sales for details.
The earthtag shape may vary for different sizes.
Materials & Finishes
Available in Brass, Nickel Plated Brass and Stainless Steel.
EARTH TAG SELECTION TABLE |
Cable Gland Size ‘V’ |
‘Y’ |
‘W’ |
‘X’ |
‘Z’ |
M16 |
6.70 |
38.0 |
32.0 |
1.5 |
M20 |
6.75 |
39.6 |
33.1 |
1.5 |
M25 |
6.85 |
45.5 |
36.5 |
1.5 |
M32 |
12.6 |
52.0 |
40.9 |
1.5 |
M40 |
13.4 |
59.6 |
44.2 |
1.5 |
M50 |
13.5 |
78.9 |
58.1 |
1.5 |
M63 |
13.5 |
87.6 |
66.8 |
1.5 |
M75 |
13.5 |
93.7 |
72.9 |
1.5 |
M80 |
14.0 |
128.0 |
104.0 |
1.5 |
M90 |
14.0 |
128.0 |
104.0 |
1.5 |
M100 |
14.0 |
128.0 |
104.0 |
2.0 |
M110 |
13.5 |
136.0 |
115.0 |
2.0 |
M115 |
13.5 |
141.0 |
120.0 |
2.0 |
M120 |
13.5 |
143.5 |
122.5 |
2.0 |
M130 |
13.5 |
153.0 |
128.0 |
2.0 |
All dimensions in millimetres. |
