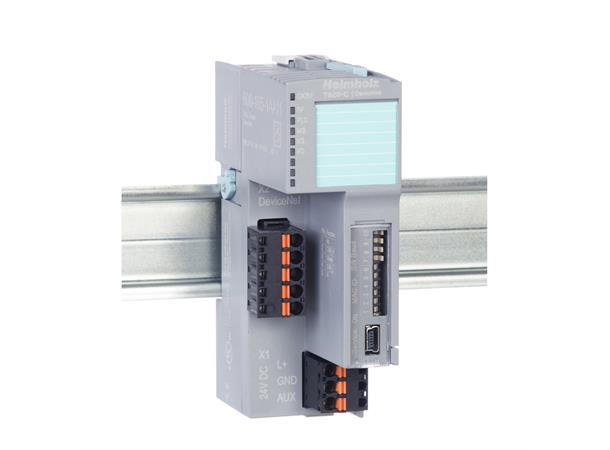

Helmholz TB20-C Bus Coupler DeviceNet Slave bus coupler

Helmholz TB20-C Bus Coupler

DeviceNet Slave bus coupler

Varenr: 600-165-1AA11

The DeviceNet Slave bus coupler connects the DeviceNet bus to peripheral modules. As a group 2 server, the coupler supports the “Predefined Master/Slave Connection Set” in accordance with sections 3-6 of the “CIP Networks Library Vol. 3.” In addition, the slave software, with the help of an “Unconnected Message Manager“ (UCMM), enables the dynamic setting up of multiple communications channels.
You can also choose from various combination possibilities for your I/O data and three kinds of DeviceNet connections: “Polled-I/O”, “Bit-Strobed-I/O,” and “COS/Cyclic-I/O.“ It is also equipped with a 2 kByte I/O data image table.
It recognizes all connected peripheral modules and assigns each module the inputs/outputs from the process image table.
Thanks to the TB20-ToolBox, it is easy to configure the system and the various module parameters and transfer them to the coupler.

A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. The bus coupler supports hot-swapping for replacing modules during operation.

Scope of delivery: Bus coupler DeviceNet Slave, 24 V power supply connector, bus cover element, base module

Dimensions (DxWxH): 73 x 35 x 110 mm



Modules can be replaced during operation (hot-swapping)
24 VDC power supply
Integrated power supply unit for powering peripheral modules (2.5 A)
Supplies the system’s I/O voltage (24 VDC)
USB device port for online diagnostics, configuring parameters, setup, and firmware updates with "TB20 ToolBox"
TB20 ToolBox simulation for commissioning the I/O system without a higher-level controller in order to test the functionality (I/O check)
Concealed "factory reset" switch for restoring the module to its factory settings
Group 2 server
UCMM-compatible
Polled, Bit-Strobe, COS/Cyclic connections
Supports Offline Connection Set, Device Heartbeat, and Device Shutdown messages
MAC ID and transfer rates can be set via software and hardware (DIP switch)
Supports 125, 250, and 500 kbps
Up to 64 TB20 modules
1024 bytes of input data / 1024 bytes of output data
120 bytes of parameter data per module
Modules can be freely configured via “TB20-ToolBox”
Configuration with Rockwell RSNetWorx© possible using explicit messaging
Reading out of coupler status possible using explicit messaging
Six LEDs, four of them bi-color (three DeviceNet LEDs and one TB20-specific)
Offers an Open Style Connector
