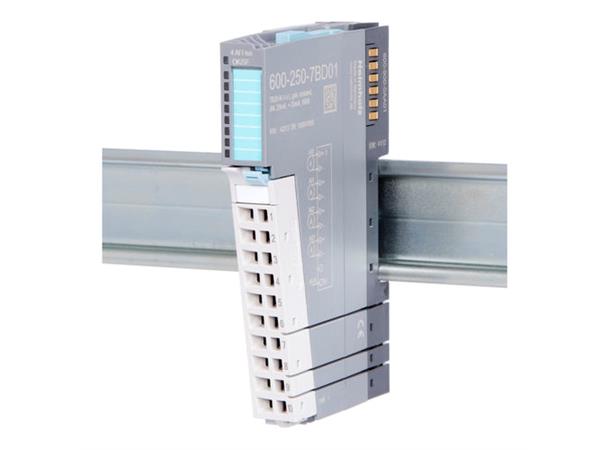

TB20 Analog input AI 4x I, 0/4...20 mA, ±20 mA, 16 bit iso

TB20 Analog input

AI 4x I, 0/4...20 mA, ±20 mA, 16 bit iso

Varenr: 600-250-7BD01

AI 4x I, 0/4-20 mA, ±20 mA, 16 Bit

Parameters for the module

  • Diagnostic alarm: On | Off
  • Overflow / underflow diagnosis: On | Off
  • Representation values: SIMATIC* S7 | SIMATIC* S5 | INT16



Parameters for each channel

  • Wire break detection (only for 4 ... 20 mA): On | Off
  • Interference frequency suppression: None | 10 Hz | 50 Hz | 60 Hz | 400 Hz
  • Measuring ranges: Deactivated | 0 ... 20 mA | 4 ... 20 mA | ±20 mA
  • Limit value alarms enabled: On | Off
  • Upper/lower limit: 16 bit analog value (±27648)
