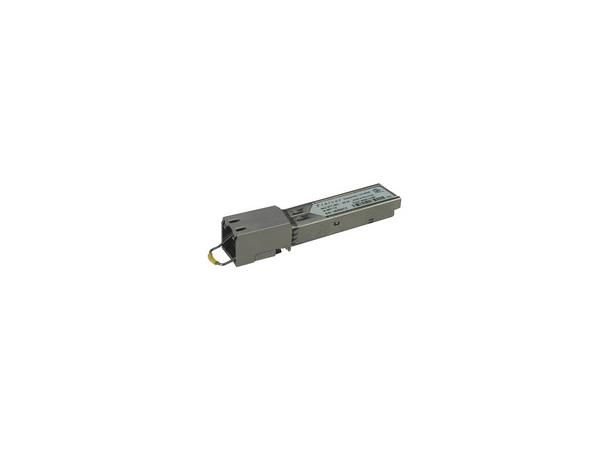

Hirschmann M-FAST SFP-TX/RJ45 SFP Modul 100BASE-T with RJ45-socket

Hirschmann M-FAST SFP-TX/RJ45

SFP Modul 100BASE-T with RJ45-socket

Varenr: 942 098-001

Product description

DescriptionSFP TX Fast Ethernet Transceiver for Switch RSP only port 1/2 and PRP (Parallel Redundancy Protocol),100 Mbit/s full duplex auto neg. fixed, cable crossing not supported
Port type and quantity1 x 100BASE-T with RJ45-socket
TypeM-FAST SFP-TX/RJ45
Order No.942 098-001

Network size - length of cable

Twisted pair (TP)0 m ... 100 m

Power requirements

Operating voltagepower supply via the switch
Power consumption1 W

Ambient conditions

Operating temperature0 ºC ... +60 ºC
Storage/transport temperature-40°C ... +85°C
Relative humidity (non-condensing)10% ... 95%
MTBF67 years (Telcordia GR-468-CORE)

Mechanical construction

Dimensions (W x H x D)14 mm x 14 mm x 70 mm
MountingSFP slot
Weight40 g
Protection classIP 20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 mm, 2 Hz - 13.2 Hz, 90 min. 0.7g, 13.2 Hz - 100 Hz, 90 min. 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min. 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 1 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
EN 61000-4-6 conducted immunity3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC CFR47 Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Safety of information technology equipmentcUL 60950-1

Scope of delivery and accessories

Scope of delivery

SFP module
