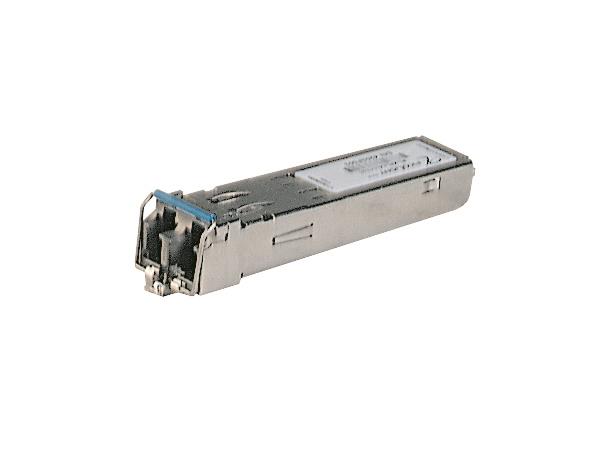

Hirschmann M-SFP-2.5-SM-/LC EEC
SFP Modul 2.5 Gigabit SM LC, 5km
Varenr:
942 163-001
Forespørsel
Beskrivelse
Dokumentasjon
Product description
Description
SFP Fiberoptic 2.5 Gigabit Ethernet Transceiver, extended temperature range
Port type and quantity
1 x 2.5 Gig with LC connector
Type
M-SFP-2.5-SM-/LC EEC
Order No.
942163001
Network size - length of cable
Single mode fiber (SM) 9/125 µm
0 to 5 km, 1310 nm; 8.5 dB link budget; 0.55 dB/km; (GR-253 CORE)
Power requirements
Operating voltage
power supply via the switch
Power consumption
1 W
Service
Diagnostics
Optical input- and output power, transceiver temperature
Ambient conditions
Operating temperature
-40 - +85 °C
Storage/transport temperature
-40 - +85 °C
Relative humidity (non-condensing)
10-95 %
MTBF
797 years; Telcordia SR-332
Mechanical construction
Dimensions (W x H x D)
20 mm x 18 mm x 50 mm
Mounting
SFP slot
Weight
40 g
Protection class
IP20
Mechanical stability
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration
1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field
10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
EN 61000-4-6 conducted immunity
3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EMC emitted immunity
FCC CFR47 Part 15
FCC CFR-47 Part 15 Class A
EN 55022
EN 55022 Class A
Approvals
Safety of information technology equipment
cUL 60950-1
Scope of delivery and accessories
Scope of delivery
SFP module
