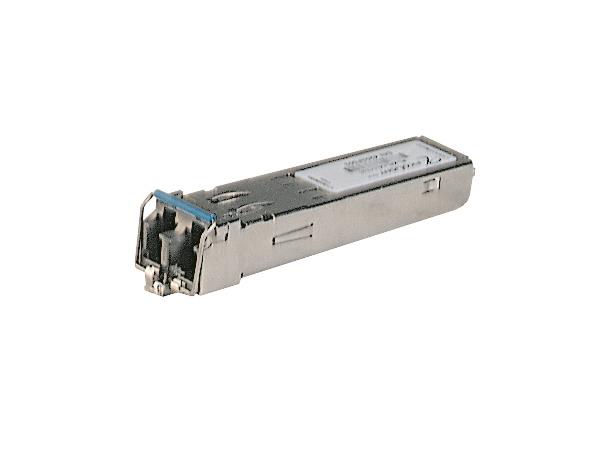

Hirschmann SFP-GIG-LX/LC, 1310nm, 20km SFP Modul Gigabit SM LC

Hirschmann SFP-GIG-LX/LC, 1310nm, 20km

SFP Modul Gigabit SM LC

Varenr: 942 196-001

Product description

DescriptionSFP Fiberoptic Gigabit Ethernet Transceiver
Port type and quantity1 x 1000BASE-LX with LC connector
TypeSFP-GIG-LX/LC
Order No.942196001

Network size - length of cable

Single mode fiber (SM) 9/125 µm0 - 20 km (Link Budget at 1310 nm = 0 - 10.5 dB; A = 0.4 dB/km; D = 3.5 ps/(nm*km))

Power requirements

Operating voltagepower supply via the switch
Power consumption1 W

Service

DiagnosticsOptical input and output power, transceiver temperature

Ambient conditions

Operating temperature0 - +60 °C
MTBF (Telcordia)262 years; Telcordia SR-332; Gb 25ºC

Mechanical construction

Dimensions (W x H x D)20 mm x 18 mm x 50 mm
MountingSFP slot
Weight40 g
Protection classIP20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 1 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC CFR-47 Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Safety of information technology equipmentcUL 60950-1
