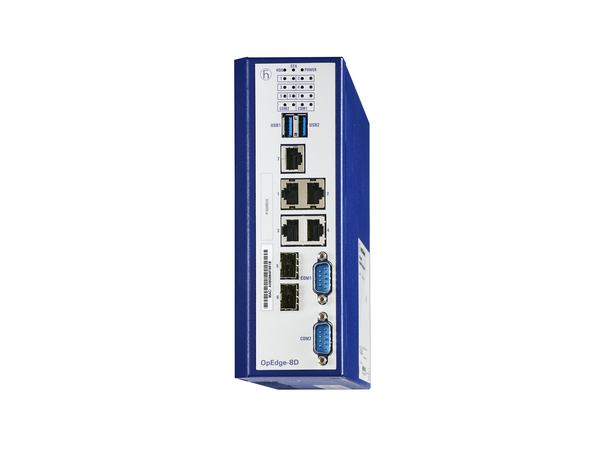

Hirschmann OpEdge-8D Industrial Gateway

Hirschmann OpEdge-8D Industrial Gateway

Varenr: 942330001
55 510,00
85 400,00 Ordinær pris

Product description

Type:OpEdge-8D
Part Number:942330001
Port type and quantity:7 ports in total: 5 x Gigabit Ethernet RJ45 LAN + 2 x Gigabit Ethernet SFP WAN
Port Speed:10/100/1000 Mbit/s RJ45, 1000 Mbit/s SFP

More Interfaces

USB interface:2 x USB 3.0 socket to connect an approved USB storage device
Serial:2 x DB9 serial interfaces for RS232 protocols
Power Supply:1 x plug-in terminal block, 6-pin

Hardware

Bypass:2 x Gigabit Ethernet Copper (2 x 1) with Gen3 Bypass
CPU:Intel Atom E3950 @ 1.6GHz
Encryption:TPM 2.0 (Trusted Platform Module)
Memory:DDR3L 8GB
Storage:64GB SSD storage

Power requirements

Operating Voltage:Dual 20 ~ 54 V DC
Power consumption:max. 25 W
Power output in BTU (IT)/h:58 Btu (IT)/h

Security features

Multipoint VPN:External connectivity via OpenVPN, IPsec or Belden Horizon™ console

Service

Protocols:SNMPv3, HTTPS, SSL-VPN, L2TP, Ping, NTP (Client/Server), DNS, Dynamic DNS, DHCP (server/client), Syslog Industrial Protocols* • MQTT (Publisher and Subscriber) • EtherNet/IP • Modbus TCP/IP * Included with use of Data Monitoring application

Software

Redundancy:Routing between LAN and WAN, WAN Backup
Management:Local Web UI for configuration, diagnostics and maintenance, Supports FTP/SFTP through Belden Horizon™ console
Diagnostics:LEDs (Power, Link Status, Data, Status), Signal Contact (24 V DC/1 A), Log File, Syslog
Configuration:Web Interface, Belden Horizon™ Console
Security:Integrated Firewall, Allowed IP List to prevent unwanted access, Secure Socket Tunneling Protocol (SSTP, port 443) with single use credentials to create tunnels, AES-256 bit encryption, Activity Logs, Additional IT-friendly security features when using Belden Horizon™ Console (formerly ProSoft Connect™, a secure, cloud-native platform for the Industrial Internet of Things): ? Virtual Lockout, Tagout (vLOTO™) – dynamic authorization for secure remote access, ? Active Directory support via Single Sign On (SSO) with SAML 2.0 ? Email and Token based multi factor authentication ? Role based access for users and devices ? Configure password rules and enforcement policies ? Audit trail with auto-backup
Miscellaneous:NTP Client and Server, DHCP Client, DNS Client
Routing:Routing between LAN and WAN, WAN Backup, IP masquerading, 1-to-1 NAT, port forwarding, L2 bridging
Application Support and Management:Docker Containers, Virtual Machines, App orchestration through Belden Horizon™ console

Ambient conditions

MTBF (Telecordia SR-332 Issue 3) @ 25°C:387,288 hours
Operating temperature:-40-+70 °C
Note:cold start at -20°C
Storage/transport temperature:-40-+85 °C
Relative humidity (non-condensing):5-95 %

Mechanical construction

Dimensions (WxHxD):160 mm x 186 mm x 65 mm
Weight:1560 g
Housing Material:Rugged high-strength sheet metal
Mounting:DIN Rail 35 mm
Protection class:IP40

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD):± 4 kV contact discharge; ± 8 kV air discharge
EN 61000-4-3 electromagnetic field:10 V/m (80 MHz-1000 MHz); 3 V/m (1.4 GHz-6.0 GHz)
EN 61000-4-4 fast transients (burst):2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage:power line: ± 1 kV (line/ground) and ± 0.5 kV (line/line); data line: ± 1 kV (line/ground)
EN 61000-4-6 Conducted Immunity:10 V (150 kHz-80 MHz)

EMC emitted immunity

EN 55032:EN 55022 Class A
FCC CFR47 Part 15:FCC 47CFR Part 15, Class A

Approvals

Basis Standard:CE, FCC
Safety of information technology equipment:UL 62368-1
Substation:IEC 61850-3, IEEE 1613

Scope of delivery and accessories

Scope of delivery:1 × Device, 2 × DIN Rail Kit

Further Instructions

Product Documentation:https://www.doc.hirschmann.com/index.html
Certificates:https://www.doc.hirschmann.com/certificates.html
Update and Revision:Revision Number: 0.24 Revision Date: 07-28-2022
