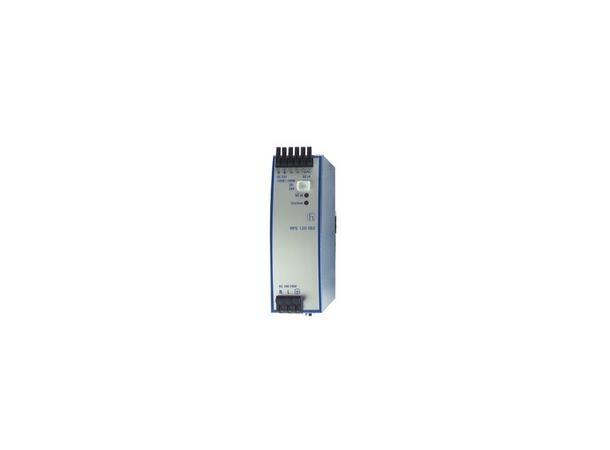

Hirschmann Power Supply RPS 120 EEC (CC)
Hirschmann Power Supply RPS 120 EEC (CC)
230 VAC prim., 24 VDC sek., 5A, 120W
Varenr:
943 662-121
Forespørsel
Beskrivelse
Dokumentasjon
Product description
Type:
RPS 120 EEC (CC)
Description:
24 V DC DIN rail power supply unit
Part Number:
943 662-121
More Interfaces
Voltage input:
1 x Bi-stable, quick-connect spring clamp terminals, 3-pin
Voltage output:
1 x Bi-stable, quick-connect spring clamp terminals, 6-pin
Power requirements
Current consumption:
max. 1,4-0,65 A at 100-240 V AC max. 1,2 - 0,45 A bei 120 - 300 V DC
Input voltage:
100-240 V AC (-15/+10%); 50-60Hz or 110 to 300 V DC (+/-20%)
Operating Voltage:
230 V
Output current:
5-4.5 A continuous; min 7.5-6.7 A for typ. 4 sec
Redundancy functions:
Power supply units can be connected in parallel
Activation Current:
15 A at 100 and 230 V AC
Power Output
Output voltage:
24-28 V DC (typ. 24,1 V); externally adjustable
Software
Diagnostics:
LED (DC OK, Overload)
Ambient conditions
Operating temperature:
-25-+70 °C
Note:
inclusive Conformal Coating (from 60 ¦C Derating)
Storage/transport temperature:
-40-+85 °C
Relative humidity (non-condensing):
5-95 %
Mechanical construction
Dimensions (WxHxD):
40 mm x 124 mm x 117 mm
Weight:
620 g
Mounting:
DIN Rail
Protection class:
IP20
Mechanical stability
IEC 60068-2-6 vibration:
Operating: 2 … 500Hz 0,5m²/s³
IEC 60068-2-27 shock:
10 g, 11 ms duration
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD):
± 4 kV contact discharge; ± 8 kV air discharge
EN 61000-4-3 electromagnetic field:
10 V/m (80 MHz ... 2700 MHz)
EN 61000-4-4 fast transients (burst):
2 kV power line
EN 61000-4-5 surge voltage:
power lines: 2 kV (line/earth), 1 kV (line/line)
EN 61000-4-6 Conducted Immunity:
10 V (150 kHz .. 80 MHz)
EMC emitted immunity
EN 55032:
EN 55032 Class A
Approvals
Basis Standard:
CE
Safety of industrial control equipment:
cUL 60950-1, cUL 508
Safety of information technology equipment:
cUL 60950-1
Hazardous locations:
ISA 12.12.01 Class 1 Div. 2 (pending)
Shipbuilding:
Germanischer Lloyd
Scope of delivery and accessories
Scope of delivery:
Rail power supply, Description and operating manual
Further Instructions
Variants
Item #
Type
943662121
RPS 120 EEC (CC)
Update and Revision:
Revision Number: 0.56 Revision Date: 10-23-2020
