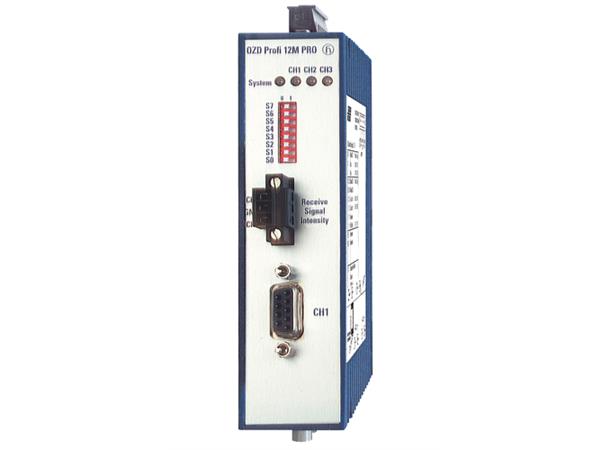

Hirschmann OZD PROFI 12M G12 PRO
2 x ST, Multimode fiber, ATEX Zone 2
Product description
Type:
OZD Profi 12M G12 PRO
Name:
OZD Profi 12M G12 PRO
Description:
Interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for plastic FO; short-haul version
Part Number:
943905321
Port type and quantity:
2 x optical: 4 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1
Signal Type:
PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)
More Interfaces
Power Supply:
5-pin terminal block, screw mounting
Signaling contact:
5-pin terminal block, screw mounting
Network size - length of cable
Multimode fiber (MM) 50/125 µm:
3000 m, 13 dB link budget at 860 nm; A = 3 dB/km
Multimode fiber (MM) 62.5/125 µm:
3000 m, 15 dB link budget at 860 nm; A = 3.5 dB/km
Multimode fiber HCS (MM) 200/230 µm:
1000 m 18 dB link budget at 860 nm; A = 8 dB/km, 3 dB reserve
Power requirements
Current consumption:
max. 200 mA
Input voltage range:
-7 V ... +12 V
Operating Voltage:
18 ... 32 VDC, typ. 24 VDC
Power consumption:
4.8 W
Redundancy functions:
HIPER-Ring (ring structure), redundant 24 V infeed
Power Output
Output voltage/output current (pin6):
5 VDC +5%, -10%, short circuit-proof/90 mA
Ambient conditions
Operating temperature:
0-+60 °C
Storage/transport temperature:
-40-+70 °C
Relative humidity (non-condensing):
10-95 %
Mechanical construction
Dimensions (WxHxD):
35 x 156 x 119 mm
Weight:
200 g
Housing Material:
plastics
Mounting:
DIN rail
Protection class:
IP20
Approvals
Basis Standard:
EU Conformity, AUS Conformity Australia
Safety of information technology equipment:
cUL508
Hazardous locations:
ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
Scope of delivery and accessories
Scope of delivery:
device, start-up instructions
