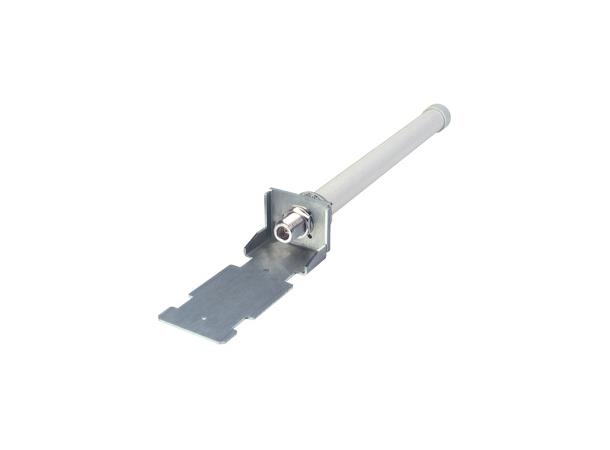

Hirschmann BAT-ANT-N-6G-IP65 WLAN antenna 6 dBi, 2.4 GHz

Hirschmann BAT-ANT-N-6G-IP65

WLAN antenna 6 dBi, 2.4 GHz

Varenr: 943 981-022

Product description

DescriptionOmnidirectional antenna for 5 GHz band
TypeBAT-ANT-N-5A-IP65
Order No.943 981-003
Cable length1 m
Cable specificationN-plug to N-plug

Radio technology

Rangerefer to antenna distance calculator
Frequency band5150 - 5875 MHz
Polarisationlinear, vertical
Elevation, Azimuthvertical: 25º, horizontal: 360º
VSWR1.5
Gain5 dBi
Antenna connectorN female, DC grounded

Ambient conditions

Operating temperature-45 ºC to +70 ºC
Storage/transport temperature-45 ºC to +70 ºC

Mechanical construction

Dimensions (W x H x D)16 x 160 mm
Mountingwall, mast
Protection classIP65
MaterialPolypropylen
Weight0.3 kg

Scope of delivery and accessories

Scope of deliveryantenna, 1 m cable, pigtail, mounting material
