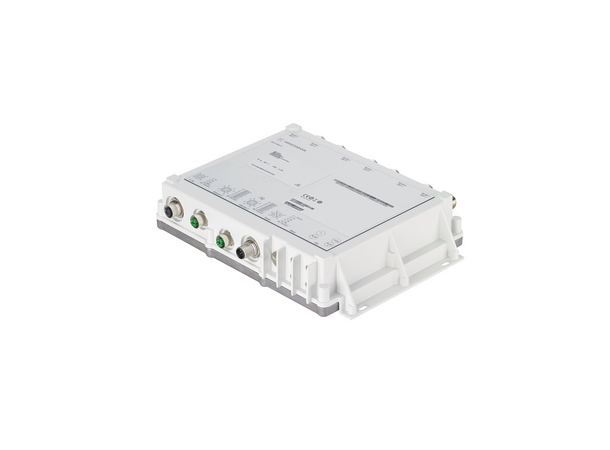

Hirschmann OpenBAT-F trådløs AP/klient BAT450-FEU599AW999AT699A999ZHXX.XX.XXXX

Hirschmann OpenBAT-F trådløs AP/klient

BAT450-FEU599AW999AT699A999ZHXX.XX.XXXX

Varenr: BAT450-02
Product description
DescriptionDual Band Ruggedized (IP65/67) Industrial Wireless LAN Access Point/Client for installation in harsh environment.
Port type and quantityFirst Ethernet: 8-pin, X-coded M12
Radio protocolIEEE 802.11a/b/g/n/ac WLAN interface as per IEEE 802.11ac, up to 1300 Mbit/s gross bandwidth
Country certificationEurope, Iceland, Liechtenstein, Norway, Switzerland, Turkey
More Interfaces
EthernetEthernet port 1: 10/100/1000 Mbit/s, PoE PD port (IEEE 802.3af)
Power Supply5-pin "A"-coded M12, PoE on Ethernet port 1
Local Management and Device ReplacementAuto Configuration Adapter (ACA) for Plug&Play device replacement, HiDiscovery
Radio technology
Antenna connector3 × N socket for each WLAN module
Frequency band; WLAN supports 2.4 GHz and 5 GHz: 2412 -2472 MHz and 5180 -5825 MHz (additional regulatory restrictions apply depending on the country of operation)
ModulationNote: MCS numbering changed with 11ac. Supported rates with up to 3 streams: MCS0-MCS9. Channel widths: 20MHz, 40MHz and 80MHz
Receiver sensitivity-95 dBm
Additional radio features3x3 MIMO (configurable). Up to 3 streams (configurable).
Hardware
EncryptionOpen, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2)
Power requirements
Operating Voltage24 VDC (16.8-32 VDC)
Power consumptionmax. 10 W
Software
Software featuresHigh performance operating system HiLCOS. Supports all WLAN functions, routing, firewall, VLAN, remote access, and redundancy. IPv4 and IPv6.
ManagementWeb Interface (HTTPs), IPv4, IPv6, SNMP v1/v2/v3
DiagnosticsIPerf Server and Client, System Log, Syslog, Ping, detailed trace functionality, (W)LANMonitor, SNMP
Management SoftwareWLAN Controller, Industrial HiVision, LANConfig
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C126 Years
Operating temperature-25-+70 °C
NoteTemperature of the surrounding air.
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Protective paint on PCBNo
Mechanical construction
Dimensions (WxHxD)261 mm x 202 mm x 56 mm
Weight2000 g
HousingMetal
MountingWall mounting. Mast/Pole mounting – set available separately.
Protection classIP65 / IP67
Approvals
Basis StandardCE, RED
Safety of information technology equipmentEN 60950-1
RadioEN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz)
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
WLAN Access Point
Access Point FunctionalityYes (Free selection between Access Point, Access Client and Point-to-Point functionality for each module separately in software). Operates as Managed Access Point in combination with a controller (WLC).
WLAN Client
Client / STA FunctionalityYes
WLAN Typical Receive Sensitivity
802.11n, 2.4 GHz, 20 MHz, MCS0-94 dBm
802.11n, 2.4 GHz, 20 MHz, MCS7-76 dBm
802.11n, 5 GHz, 20 MHz, MCS0-93 dBm
802.11n, 5 GHz, 20 MHz, MCS7-73 dBm
Scope of delivery and accessories
Accessories to Order SeparatelyExternal antennas; external surge protection; Mast mount adapter; Field-Assembly Power Connector M12 (ELKA 5012 PG7); Field-Assembly Ethernet Plug (942 083-001); Serial terminal cable (943 902-001); Indoor LTE Antenna (WWAN-A-I-41-S-O), Indoor GPS Antenna (GNSS-A-O-90-S-P); Overvoltage Protector WLAN (943 903-373); Overvoltage Protector Ethernet (943 903-374)
Scope of deliveryDevice, safety instructions, dust protection caps , EU declaration of conformity , 1x Field-Assembly Power Connector M12 (ELKA 5012 PG7) , 1x Field-Assembly Ethernet Plug (942 083-001)
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
Certificateshttps://www.doc.hirschmann.com/certificates.html
Software Downloadhttps://hirschmann-support.belden.com/en-US/downloads
