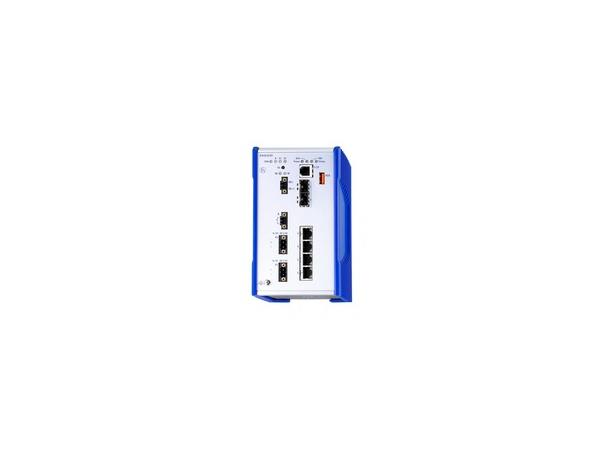

Hirschmann EAGLE30 Security Firewall EAGLE30-04022O6TT999SK9Z9HSE3F

Hirschmann EAGLE30 Security Firewall

EAGLE30-04022O6TT999SK9Z9HSE3F

Varenr: EAGLE30-04022O6TT-17
Product description
DescriptionIndustrial firewall and security router, DIN rail mounted, fanless design. Fast Ethernet, Gigabit Uplink type. 2 x SHDSL WAN ports
Port type and quantity6 ports in total; Ethernet Ports: 2 x SFP slots (100/1000 Mbit/s); 4 x 10/100BASE TX / RJ45
More Interfaces
V.24 interface1 x RJ11 socket
SD-card slot1 x SD card slot to connect the auto configuration adapter ACA31
USB interface1 x USB to connect auto-configuration adapter ACA22-USB
Digital Input1 x plug-in terminal block, 2-pin
Power Supply1 x plug-in terminal block, 3-pin
Signaling contact1 x plug-in terminal block, 2-pin
Network size - length of cable
Twisted pair (TP)0-100 m
Single mode fiber (SM) 9/125 µmsee SFP fiber module M-SFP-xx / M-Fast SFP-xx
Single mode fiber (LH) 9/125 µm (long haul transceiver)see SFP fiber module M-SFP-xx / M-Fast SFP-xx
Multimode fiber (MM) 50/125 µmsee SFP fiber module M-SFP-xx / M-Fast SFP-xx
Multimode fiber (MM) 62.5/125 µmsee SFP fiber module M-SFP-xx / M-Fast SFP-xx
Network size - cascadibility
Line - / star topologyany
Power requirements
Operating Voltage1x 60/110/125/220/250 VDC (48V - 320 VDC) and 110/120/220/230 VAC (88 - 265 VAC)
Power consumption14 W
Power output in BTU (IT)/h48
Security features
Multipoint VPNIPSec VPN
Deep Packet InspectionOPC, Modbus and DNP3
Stateful inspection firewallFirewall rules (incoming/outgoing, management); DoS prevention
Software
RedundancyVRRP (Virtual Router Redundancy Protocol); VRRP Tracking
ManagementSNMPv3; SSH2/SFTP/SCP; HTTP; HTTPS; V.24 CLI; SNMPv1/2, Traps; local and central user management (RADIUS); HiDiscovery; Industrial HiVision; HiView; ; Dual Software Image Support; LLDP (802.1AB);
DiagnosticsLEDs (power, link status, data, status, ACA, RM); signal contact (DC 24 V / 1 A); logfile; syslog; configuration check; RMON (statistics); SFP diagnostics (temperature, optical transmit and receive power); trap for changes and configuration saves; Counter for ACL Rules Verbose syslog with traffic information
ConfigurationCommand Line Interface (CLI); web interface; Auto Configuration Adapter (ACA22, ACA31); HiDiscovery; Industrial HiVision; Automatic Configuration Undo (roll-back); Configuration Fingerprint; Text-based Configuration File (XML); CLI Scripting; Full-featured MIB Support;
SecurityLayer 3 and Layer 2 Access Control Lists (ACL); ACL flow based limiting; Audit trail; HTTPS; SSHv2; SFTP; SNMPv3; Management VLAN; Role based Access Control; Remote Authentication via RADIUS; IEEE1686 compliant configuration possible; Ingress storm protection, Password change on first login
Time synchronisationBuffered Real Time Clock, NTP Client, NTP Server
MiscellaneousSupport for WAN Interface SHDSL; Support for FE/GE Twisted Pair SFP; Wire speed port scan prevention; 8 QoS classes; port prioritization IEEE 802.1D/Q; VLAN IEEE 802.1Q, DHCP relay
RoutingVLAN and port based routing; static routing; multinetting; IP masquerading; 1-to-1 NAT; port forwarding; Static and Dynamic ARP enteries; OSPFv2; Static Route Tracking
Ambient conditions
Operating temperature0-+60 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)90 x 164 x 120mm
Weight1200 g
MountingDIN Rail
Protection classIP20
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80 - 3000 MHz); 1kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line); data line: 1 kV; IEEE1613: power line 5kV (line/earth)
EN 61000-4-6 Conducted Immunity10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55032EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE; FCC; EN 61131; EN 60950
Scope of delivery and accessories
AccessoriesRail power supply RPS 30, RPS 80 EEC, RPS 120 EEC, terminal cable, network management Industrial HiVision, auto-configuration adpater ACA22-USB EEC or ACA31, 19" installation frame
Scope of deliveryDevice, terminal blocks , General safety instructions
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
Certificateshttps://www.doc.hirschmann.com/certificates.html
