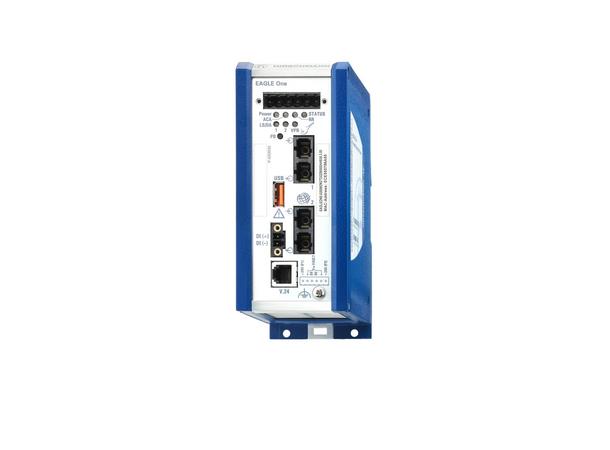

Hirschmann EagleOne Firewall EAGLEOne-0200M2M2SDDZ90000HHE

Hirschmann EagleOne Firewall

EAGLEOne-0200M2M2SDDZ90000HHE

Varenr: EAGLEONE-0200M2M2-01
Product description
DescriptionIndustrial firewall and security router with extensive Layer 2 and Layer 3 redundancy features, DIN rail mounted, fanless design.
Port type and quantity2 ports in total, Ports Fast Ethernet: 2 x 10/100 Mbit/s
More Interfaces
V.24 interface1 x RJ11 socket
USB interface1 x USB to connect auto-configuration adapter ACA21-USB
Digital Input1 x plug-in terminal block, 2-pin
Signaling contact1 x plug-in terminal block, 6-pin
Network size - length of cable
Multimode fiber (MM) 50/125 µm0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km
Multimode fiber (MM) 62.5/125 µm0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km 0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km
Network size - cascadibility
Line - / star topologyany
Power requirements
Operating Voltage12/24/48 V DC/24V AC (redundant)
Power consumption9.5 W
Redundancy functionsUse in redundant networks/ring coupling, Firewall redundancy (layer 4)
Security features
Multipoint VPNPoint to point, point to multipoint, remote enable/disable or via digital input, IPSec, IKEv1/v2, 3DES, AES (-128, -192, -256), Pre-Shared Key, X.509v3 certificates, MD5, SHA-1, NAT-T, Address Mapping, Hub and Spoke
Stateful inspection firewallFirewall rules (incoming/outgoing, modem access, management), DoS prevention, MAC filter, user firewall for external activation of FW rules
Software
ManagementSSHv1, SSHv2, SNMP v1/v2/v3, HTTPS, SFTP, V.24, Access to management restricted by VLAN, Restricted management access, Remote authentication via RADIUS, Password change on first login
DiagnosticsLLDP, LEDs (status, VPN, redundancy, link status, data, ACA), Signal contact, logfile, Syslog, configuration check
ConfigurationCommand Line Interface (CLI), WEB based management, Automatic configuration undo (roll-back), Text based configuration file (XML), HiDiscovery, HiView, Industrial HiVision
Time synchronisationNTP/SNTP
RoutingStatic unicast routing, Multinetting, 1-to-1 NAT, IP masquerading, Port forwarding, Double NAT
Ambient conditions
Operating temperature0-+60 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)60 mm x 145 mm x 125 mm
Weight660 g
MountingDIN rail
Protection classIP20
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-3000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55032EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, C-Tick, EN 61131, EN 60950
Scope of delivery and accessories
AccessoriesRail power supply RPS 30, RPS 80 EEC, RPS 120 EEC, terminal cable, network management Industrial HiVision, auto-configuration adpater ACA21-USB EEC, 19" installation frame
Scope of deliveryDevice, terminal block, General safety instructions
