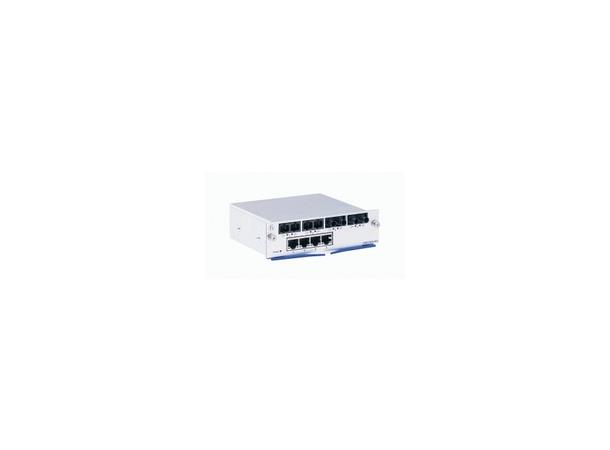

GRM20 media module for Greyhound switch

GRM20 media module for Greyhound switch

Varenr: GRM20-ZZZZZZZZSZ9HHS

Product description

TypeGRM20-ZZZZZZZZSZ9HHS
Order No.GRM20-ZZZZZZZZSZ9HHS
DescriptionFast Ethernet media module
Port type base unit8 x ports in total; 8 x FE SFP slot;

Network size - length of cable

Multimode fiber (MM) 50/125 µmsee SFP modules
Multimode fiber (MM) 62.5/125 µmsee SFP modules
Single mode fiber (SM) 9/125 µmsee SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver)see SFP modules

Power requirements

Operating voltagepower supply via GREYHOUND switch
Power consumption2.0

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)5 % ... 95 %

Mechanical construction

Weight450g - 650g depending on variant
Protection classIP30

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line, IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 conducted immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage30 V, 50 Hz continous; 300 V, 50 Hz 1 s

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Safety of industrial control equipmentEN61131, EN60950

Scope of delivery and accessories

Scope of deliveryDevice
