Product description

Description

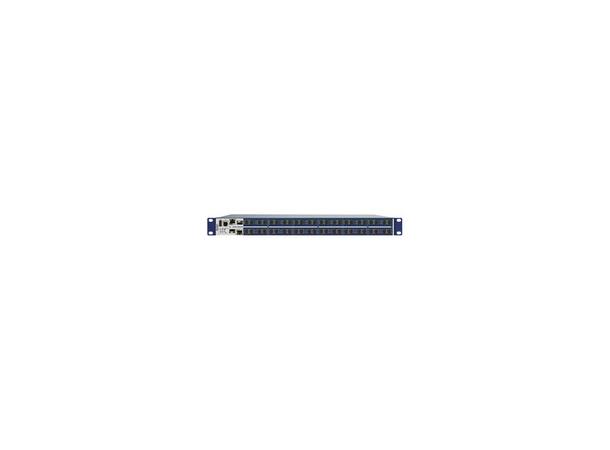

Industrial managed Fast/Gigabit Ethernet Switch, 19" rack mount, fanless Design, according to IEEE 802.3, store-and-forward-switching

Port type and quantity

Gigabit-Ethernet ports in total: 4; 4 x 10/100/1000BASE TX RJ45; Fast-Ethernet ports in total: 16 x ports in total; 16 x Twisted Pair,

Type

MAR1030-4TTTTTTTTTTTTTTTTT99999999UMMHPHH08.0.

Order No.

MAR1030-4TTTTTTTTTTTTTTTTT99999999UMMHPHH08.0.



More Interfaces

V.24 interface

1 x RJ11 socket

USB interface

1 x to connect auto-configuration adapter ACA21-USB



Network size - length of cable

Twisted pair (TP)

0 m ... 100 m



Network size - cascadibility

Line - / star topology

Any

Ring structure (HIPER-Ring) quantity switches

100 switches



Power requirements

Operating voltage

Power supply 1: 120/250 VDC, 110/230 VAC; Power supply 2: 120/250 VDC, 110/230 VAC

Current consumption at 230 V AC

Power supply 1 and 2: 150 mA (35W) max, if all ports are equipped with fiber



Software

Management

Serial interface, web-interface, SNMP V1/V2, HiVision file transfer SW HTTP/TFTP, LLDP-MED, Voice VLAN

Diagnostics

LEDs, log-file, syslog, relay contact, RMON, port mirroring 1:1 and n:1, egress/ingress traffic configurable, topology discovery 802.1AB, cable tester (TX), address conflict detection, network error detection, SFP diagnostic [temperature, optical input and output power (µW and dBm)], Trap for configuration saving and changing, duplex mismatch detection, disable learning, Port Monitor

Configuration  Comand line interface (CLI), TELNET, BootP, DHCP, DHCP option 82, HIDiscovery, easy device exchange with auto-configuration adapter ACA21-USB (automatic software and/or configuration upload), automatic script load from ACA21, integrated DHCP server per port, DHCP relay, automatic invalid configuration undo, Offline Configuration, SFP Whitelist, ARC automatic ring configuration (MRP), automatic port shutdown (link flapping), configuration signature (water marking), overload detection

Security

Port Security (IP und MAC) with multiple addresses (MAC 50 per port), SNMP V3, SSHv2, Authentication (IEEE802.1x), 802.1x Multi Cliant Authentication, Guest VLAN and Unauthenticated VLAN, Port based Radius VLAN assignment

Redundancy functions

HIPER-Ring, Fast HIPER-Ring, MRP, MSTP, RSTP - IEEE802.1D-2004, MRP and RSTP in parallel, link aggregation, multiple rings

Filter

QoS 4 classes, priorisation (IEEE 802.1D/p), VLAN (IEEE 802.1Q), Voice VLAN, shared VLAN learning, Q-in-Q double VLAN tagging, multicast IGMP v1/v2/v3 (snooping/querier), multicast detection unknown multicast, broadcast-, unicast-, multicast limiter, fast aging, GMRP IEEE 802.1D, Jumbo Frame Support

Industrial Profiles

EtherNet/IP and PROFINET (2.2 PDEV, GSDML Stand-alone generator, automatic device exchange) profiles included, configuration and diagnostic via automation software tools like e.g. STEP7, or Control Logix IEC61850 protocol (MMS Server, Switch Model)

Time synchronisation  SNTP Server, PTP / IEEE 1588, realtime clock with energy buffer

Flow control  Flow Control 802.3x, Port Priority 802.1D/p, Priority (TOS/DIFFSERV), Prio (MAC/IP), Prio Mapping (TOS Layer2), Traffic Shaping (Unicast, Multicast, Broadcast) Ingress / Egress



Ambient conditions

Operating temperature

-40 ºC ... 85 ºC

Storage/transport temperature

-40 ºC ... 85 ºC

Relative humidity (non-condensing)

10 % ... 95 %

Protective paint on PCB

No



Mechanical construction

Dimensions (W x H x D)

445 mm x 44 mm x 308 mm

Mounting

19" control cabinet

Weight

appr. 5 kg

Protection class

IP30



Mechanical stability

IEC 60068-2-27 shock

15 g, 11 ms duration, 18 schocks

IEC 60068-2-6 vibration

1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13,2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.



EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)

8 kV contact discharge, 15 kV air discharge

EN 61000-4-3 electromagnetic field

35 V/m (80 - 2700 MHz); 1kHz, 80% AM

EN 61000-4-4 fast transients (burst)

4 kV power line, 4 kV data line

EN 61000-4-5 surge voltage

Power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line IEEE1613: power line 5kV (line/earth)

EN 61000-4-6 conducted immunity

2,5 kV (line/earth), 1 kV (line/line) (1MHz)

EN 61000-4-16 mains frequency voltage

30V, 50Hz continous; 300V, 50Hz 1s



EMC emitted immunity

FCC CFR47 Part 15

FCC CFR47 Part 15 Class A

EN 55022

EN 55022 Class A



Approvals

Safety of industrial control equipment

cUL 508 (pending)

Hazardous locations

cUL 1604 Class1 Div 2 (pending)

Germanischer Lloyd

Germanischer Lloyd (in preparation)

Substation

IEC 61850-3; IEEE 1613

Transportation

EN 50121-4, NEMA TS
