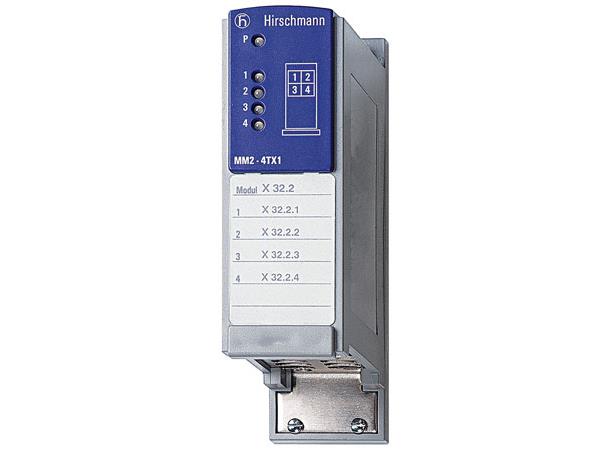

Hirschmann MM20, 4xTX 10/100 Mbps
Hirschmann MM20, 4xTX 10/100 Mbps
Media modul for MICE
Varenr:
MM20-T1T1T1T1SAHH
Forespørsel
Beskrivelse
Dokumentasjon
Product description
Description
Fast Ethernet media module for MICE Switches (MS...)
Port type and quantity
Port 1: 10/100BASE-TX, RJ45; Port 2: 10/100BASE-TX, RJ45; Port 3: 10/100BASE-TX, RJ45; Port 4: 10/100BASE-TX, RJ45
Type
MM20-T1T1T1T1SAHH
Order No.
MM20-T1T1T1T1SAHH
Network size - length of cable
Twisted pair (TP)
0 m ... 100 m
Multimode fiber (MM) 50/125 µm
-
Multimode fiber (MM) 62.5/125 µm
-
Single mode fiber (SM) 9/125 µm
-
Single mode fiber (LH) 9/125 µm (long haul transceiver)
-
Power requirements
Operating voltage
Power supply via the backplane of the MICE switch
Power consumption
0.8 W
Ambient conditions
Operating temperature
0 ºC ... 60 ºC
Storage/transport temperature
-40 ºC ... 70 ºC
Protective paint on PCB
No
Relative humidity (non-condensing)
10 % ... 95 %
Mechanical construction
Dimensions (W x H x D)
38 mm x 134 mm x 118 mm
Width
38 mm
Height
134 mm
Depth
118 mm
Mounting
Backplane
Weight
n/a
Protection class
IP20
Mechanical stability
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration
1 mm, 2 Hz - 13,2 Hz, 90 min.; 0,7g, 13,2 Hz - 100 Hz, 90 min.; 3,5 mm, 3 Hz - 9 Hz, 10 Zyklen, 1 Oktave/min.; 1g, 9 Hz - 150 Hz, 10 Zyklen, 1 Oktave/min
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field
10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity
3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EMC emitted immunity
FCC CFR47 Part 15
FCC CFR47 Part 15 Class A
EN 55022
EN 55022 Class A
Approvals
Safety of industrial control equipment
cUL 508
Hazardous locations
ISA 12.12.01 Class 1 Div. 2
Scope of delivery and accessories
Scope of delivery
Module, operating manual
Accessories to order separately
ML-MS2/MM labels
