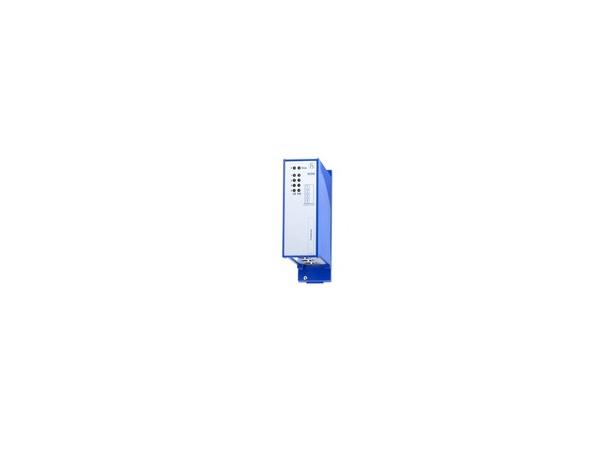

Hirschmann Power MICE Module, 4x MM/SC MSM20-M2M2M2M2SZ9HH9EXX.X.XX

Hirschmann Power MICE Module, 4x MM/SC

MSM20-M2M2M2M2SZ9HH9EXX.X.XX

Varenr: MSM20-4xM2SZ9HHE
Product description
DescriptionFast Ethernet Media Module for PowerMICE Switches (MSP) , Standard Ethernet media modul
Port type and quantityPort 1: 100BASE-FX, MM-SC; Port 2: 100BASE-FX, MM-SC; Port 3: 100BASE-FX, MM-SC; Port 4: 100BASE-FX, MM-SC
Network size - length of cable
Multimode fiber (MM) 50/125 µmPort 1: 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km Port 2: 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km Port 3: 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km Port 4: 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km
Multimode fiber (MM) 62.5/125 µmPort 1: 0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km Port 2: 0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km Port 3: 0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km Port 4: 0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB Reserve, B = 500 MHz x km
Power requirements
Operating VoltagePower supply via the backplane of the MSP switch
Power consumption5 W
Power output in BTU (IT)/h17
Software
DiagnosticsLEDs (power, mode, link/data)
Ambient conditions
Operating temperature0-+60 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)5-95 %
Mechanical construction
Dimensions (WxHxD)38 mm × 133 mm × 118 mm
Weight249 g
MountingBackplane
Protection classIP20
Mechanical stability
IEC 60068-2-6 vibration5 Hz - 8.4 Hz with 3.5 mm amplitude; 8.4 Hz-150 Hz with 1 g
IEC 60068-2-27 shock15 g, 11 ms duration
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)± 4 kV contact discharge; ± 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80 MHz-3000 MHz)
EN 61000-4-4 fast transients (burst)± 2 kV power line; ± 4 kV data line
EN 61000-4-5 surge voltagepower line: ± 2 kV (line/earth), ± 1 kV (line/line); data line: ± 1 kV (line/earth)
EN 61000-4-6 Conducted Immunity10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55022EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardC-Tick EN61131
Safety of industrial control equipmentEN 60950
TransportationNEMA TS2
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
Scope of deliveryDevice, General safety instructions
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
Certificateshttps://www.doc.hirschmann.com/certificates.html
