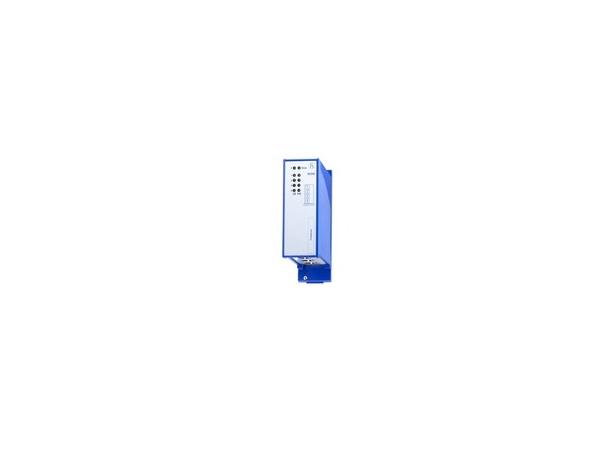

Hirschmann Power MICE Module, 4x combo
MSM40-C1C1C1C1TUWHH9E99
Product description
Description
Gigabit Ethernet media module for PowerMICE Switches (MSP).
Port type and quantity
Port 1: Gigabit Combo Port (10/100/1000Base-TX); Port 2: Gigabit Combo Port (10/100/1000Base-TX); Port 3: Gigabit Combo Port (10/100/1000Base-TX); Port 4: Gigabit Combo Port (10/100/1000Base-TX)
Type
MSM40-C1C1C1C1TUWHH9E99.9
Order No.
MSM40-C1C1C1C1TUWHH9E99.9
Network size - length of cable
Twisted pair (TP)
0 m ... 100 m
Power requirements
Operating voltage
Power supply via the backplane of the MICE switch
Ambient conditions
Operating temperature
-40 ºC ... 70 ºC
Storage/transport temperature
-40 ºC ... 85 ºC
Protective paint on PCB
No
Relative humidity (non-condensing)
5 % ... 95 %
Mechanical construction
Dimensions (W x H x D)
38 mm x 134 mm x 118 mm
Mounting
Backplane
Weight
n/a
Protection class
IP20
Mechanical stability
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration
1 mm, 2–13.2 Hz, 10 cycles, 1 octave/min; 3.5 mm, 5-8.4Hz, 10 cycles, 1 octave/min; 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min
EMC interference immunity
EN 61000-4-3 electromagnetic field
10 V/m (80-3000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 4 kV data line
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity
10 V (150 kHz-80 MHz)
EMC emitted immunity
FCC CFR47 Part 15
FCC 47 CFR Part 15 Class A
EN 55022
EN 55022 Class A
Approvals
Basis Standard
C-Tick, CE, EN61131
Safety of information technology equipment
EN 60950
Safety of industrial control equipment
cUL 508, cUL 60950
Hazardous locations
ATEX-95, Zone 2
Transportation
NEMA TS2
Shipbuilding
Germanischer Lloyd
Country Approval
C-Tick
