ETHERNET / Fast ETHERNET / GIGA ETHERNET-Switch compliant to IEEE 802.3

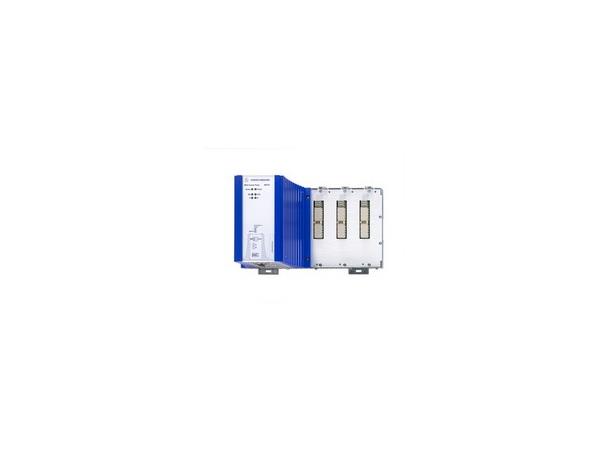

- Modular, managed, industrial Switch for DIN hat rail
- Store-and-Forward-Switching
- Software Layer 2 Professional
- Fanless design
- 28 Ports via media moduls, 3 slots integrated in the back panel (8 ports fast ethernet, 4 ports gigabit ethernet), 2 additional slots via MB- 2T expansion backplane ( 8 ports)
- 4 Ports 10/100/1000
- 24 Ports 10/100

Further interfaces
- two different connectors for power supply and alarm relay
1st. pluggable terminal block, 4-pin connector with power supply1 + Relay1
2nd pluggable terminal block, 4-pin connector with power supply2 + Relay2
advantage for the customer, although disconnect one connector, the switch still works
- V.24 interface, 1 x RJ11
- USB 1.1 interface for external flash memory (ACA 21-USB)
-SD slot for auto-configuration adapter ACA31 (SD card)

Diagnostics

LEDs, log-file, syslog, relay contact, RMON, port mirroring 1:1, topology discovery 802.1AB, disable learning, SFP diagnostic (temperature, optical input and
output power, power in dBm)

Filter
QoS 4 classes, priorisation (IEEE 802.1D/p), VLAN (IEEE 802.1Q), Voice VLAN, shared VLAN learning, Q-in-Q double VLAN tagging, multicast IGMP v1/v2/v3 (snooping/querier), multicast detection unknown multicast, broadcast-, unicast-, multicast limiter, fast aging, GMRP IEEE 802.1D

Redundancy functions
HIPER-Ring, Fast HIPER-Ring, MRP, MSTP, RSTP - IEEE802.1D-2004, MRP and RSTP in parallel, link aggregation, multiple rings

Time synchronisation

SNTP Server, PTPv2 one Step Boundary Clock and Transparent Clock / IEEE 1588 Support via Media module

Industrial Profiles

EtherNet/IP and PROFINET (2.2 PDEV, GSDML stand-alone generator, automatic device exchange) profiles included, configuration and diagnostic via automation software tools like e.g. STEP7, or Control Logix

Flow control

Flow Control 802.3x, Port Priority 802.1D/p, Priority (TOS/DIFFSERV)

Ambient conditions
- Operating temperature 0 ºC up to +60 ºC
- Storage/ transport temperature -40 ºC up to +70 ºC
- Relative humidity ( non- condensing) 10% up to 95%
- Dimensions ( W x H x D) 236,6 mm x 147,2 mm x 141,75 mm
- Protection class IP 20

Mechanical stability
- IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks

IEC 60068-2-6 Vibration
1 mm (2 Hz - 13,2 Hz resonance frequencies 90 min.
0,7g (13,2 Hz -100Hz resonance frequencies 90 min.
3,5 mm (3 Hz - 9 Hz), 10 cycles, 1 octave/min.
1g (9 Hz - 150 Hz), 10 cycles, 1 octave/min.

EMC interference immunity
- EN 61000-4-2 electrostatic discharge ( ESD) (ESD), 6 kV contact discharge, 8 kV air discharge
- EN 61000-4-3 electromagnetic field 10 V/m
- EN 61000-4-4 fast transients ( burst)) 2 kV power line, 1 kV data line
- EN 61000-4-5 surge voltage, Power line: 2 kV(linie/earth), 1 kV (linie/line), 1 kV data line
- EN 61000-4-6 Conducted Immunity 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EMC emitted immunity
- FCC CFR47 Part 15 Class A
- EN 55022 Class A

Approvals
Basis Standard                                           CE, EN61131
Safety of information technology equipment  EN 60950-1
Transportation                                           NEMA TS2
Country Approval                                        C-Tick

- Power supply, redundant 24 V DC (-25% up to +30%), current consumption at 24V DC 650 mA (not including media moduls)
