Product description

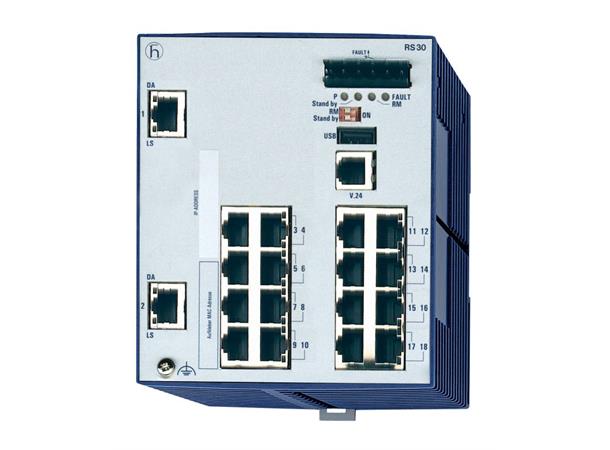

Description 18 port Gigabit/Fast-Ethernet-Switch (2 x Gigabit Ethernet, 16 x Fast Ethernet), managed, software Layer 2 Professional, for DIN rail store-and-forwardswitching,

fanless design

Port type and quantity 18 Ports in total, 2 Gigabit Ethernet ports; 1. uplink: 10/100/1000BASE-TX, RJ45; 2. uplink: 10/100/1000BASE-TX, RJ45; 16 x standard 10/100 BASE TX, RJ45

Type RS30-1602T1T1TDAEHH08.0.

More Interfaces

Power supply/signaling contact 1 x plug-in terminal block, 6-pin

V.24 interface 1 x RJ11 socket

USB interface 1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Network size - length of cable

Twisted pair (TP) 0 m ... 100 m

Network size - cascadibility

Line - / star topology any

Ring structure (HIPER-Ring) quantity switches 50 (reconfiguration time < 0.3 sec.)

Power requirements

Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)

Current consumption at 24 V DC 542 mA

Current consumption at 48 V DC 271 mA

Power output in Btu (IT) h 44.4
