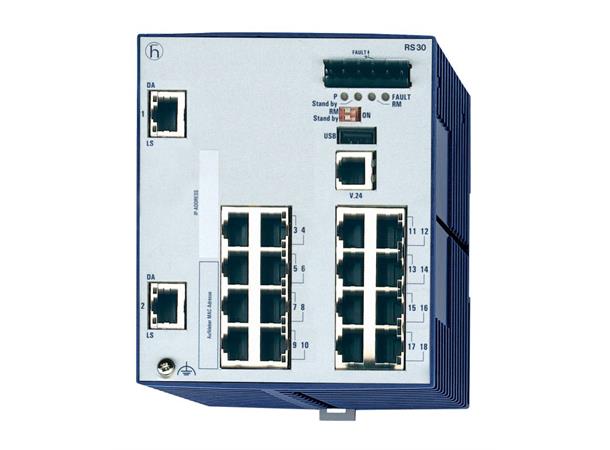

Description 18 port Gigabit/Fast-Ethernet-Switch (2 x Gigabit Ethernet, 16 x Fast Ethernet), managed, software Layer 2 Professional, for DIN rail store-and-forwardswitching,

fanless design

Port type and quantity 18 Ports in total, 2 Gigabit Ethernet ports; 1. uplink: 10/100/1000BASE-TX, RJ45; 2. uplink: 10/100/1000BASE-TX, RJ45; 16 x standard 10/100 BASE TX, RJ45

Type RS30-1602T1T1TDAPHH08.0.

More Interfaces

Power supply/signaling contact 1 x plug-in terminal block, 6-pin

V.24 interface 1 x RJ11 socket

USB interface 1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Network size - length of cable

Twisted pair (TP) 0 m ... 100 m

Network size - cascadibility

Line - / star topology any

Ring structure (HIPER-Ring) quantity switches 50 (reconfiguration time < 0.3 sec.)

Power requirements

Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)

Current consumption at 24 V DC 542 mA

Current consumption at 48 V DC 271 mA

Power output in Btu (IT) h 44.4

Software

Management Serial interface, web-interface, SNMP V1/V2, HiVision file transfer SW HTTP/TFTP, LLDP-MED, Voice VLAN

Diagnostics

LEDs, log-file, syslog, relay contact, RMON, port mirroring 1:1 and n:1, egress/ingress traffic configurable, topology discovery 802.1AB, cable tester (TX),

address conflict detection, network error detection, SFP diagnostic [temperature, optical input and output power (µW and dBm)], Trap for configuration saving

and changing, duplex mismatch detection, disable learning, Port Monitor

Configuration Comand line interface (CLI), TELNET, BootP, DHCP, DHCP option 82, HIDiscovery, easy device exchange with auto-configuration adapter ACA21-USB (automatic

software and/or configuration upload), automatic script load from ACA21, integrated DHCP server per port, DHCP relay, automatic invalid configuration undo,

Offline Configuration, SFP Whitelist, ARC automatic ring configuration (MRP), automatic port shutdown (link flapping), configuration signature (water marking),

overload detection

Security

Port Security (IP und MAC) with multiple addresses (MAC 50 per port), SNMP V3, SSHv2, Authentication (IEEE802.1x), 802.1x Multi Client Authentication, Guest

VLAN and Unauthenticated VLAN, Port based Radius VLAN assignment, Login Banner

Redundancy functions

HIPER-Ring, Fast HIPER-Ring, MRP, MSTP, RSTP - IEEE802.1D-2004, MRP and RSTP in parallel, link aggregation, multiple rings

Filter

QoS 4 classes, priorisation (IEEE 802.1D/p), VLAN (IEEE 802.1Q), Voice VLAN, shared VLAN learning, Q-in-Q double VLAN tagging, multicast IGMP v1/v2/v3

(snooping/querier), multicast detection unknown multicast, broadcast-, unicast-, multicast limiter, fast aging, GMRP IEEE 802.1D

Industrial Profiles

EtherNet/IP and PROFINET (2.2 PDEV, GSDML stand-alone generator, automatic device exchange) profiles included, configuration and diagnostic via automation

software tools like e.g. STEP7, or Control Logix

Time synchronisation

SNTP client/server, PTP / IEEE 1588, realtime watch with energy buffer

Flow control

Flow control 802.3x, port priority 802.1D/p, priority (TOS/DIFFSERV), prio (MAC/IP), prio mapping (TOS Layer2), traffic shaping (unicast, multicast, broadcast)

ingress / egress

Operating temperature -40 ºC ... 70 ºC

Storage/transport temperature -40 ºC ... 85 ºC

Relative humidity (non-condensing) 10 % ... 95 %

MTBF 36.9 years (MIL-HDBK-217F)

Protective paint on PCB No

Dimensions (W x H x D) 110 mm x 131 mm x 111 mm

Mounting DIN Rail

Protection class IP20
