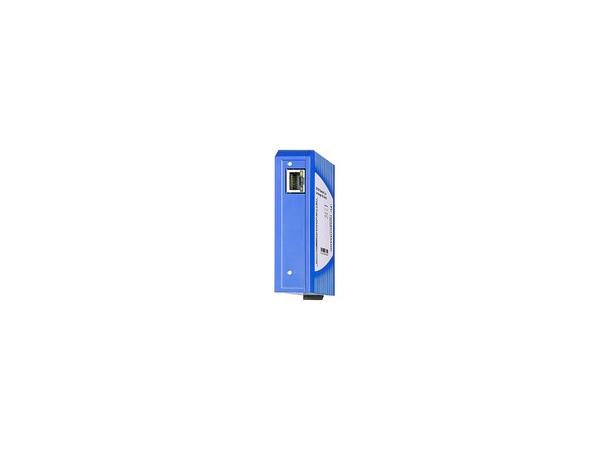

Spider III Standard Line,100mbit 2-port SPIDER-SL-20-01T1S29999SZ9HHHH

Spider III Standard Line,100mbit 2-port

SPIDER-SL-20-01T1S29999SZ9HHHH

Varenr: SL20-01T1S29999SZ9

Product description

DescriptionUnmanaged, Industrial ETHERNET Rail Switch, fanless design, store and forward switching mode, 10/100 Mbit/s Ethernet
Port type and quantity1x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity, 1 x 100BASE-FX, SM cable, SC sockets
TypeSPIDER-SL-20-01T1S29999SZ9HHHH
Order No.SPIDER-SL-20-01T1S29999SZ9HHHH

More Interfaces

Power supply/signaling contact1 x plug-in terminal block, 3-pin

Network size - length of cable

Twisted pair (TP)0 m ... 100 m
Single mode fiber (SM) 9/125 µm0 - 30 km (Link Budget at 1300 nm = 0 - 16 db; A = 0.4 dB/km; BLP = 3.5 ps/(nm*km))

Network size - cascadibility

Line - / star topologyany

Power requirements

Operating voltage12/24 V DC (9.6 - 32 V DC)
Current consumption at 24 V DCMax. 83 mA
Power consumptionMax. 2.0 W, 7.0 Btu (IT) h

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)0 % ... 95 %
MTBF (Telcordia)2.140.568 hours; Telcordia SR-332; Gb 25°C

Mechanical construction

Dimensions (W x H x D)26 x 102 x 79 mm (w/o terminal block)
MountingDIN Rail
Weight100 g
Protection classIP30

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min; 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity10 V (150 kHz-80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Service

DiagnosticsLEDs (power, link status, data, data rate)

Scope of delivery and accessories

Scope of deliveryDevice, terminal block, safety instruction
AccessoriesRail Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail mounting 40mm - order nr. 942 177-001,wall mounting plate for DIN rail mounting 70mm - order nr. 942 177-002
