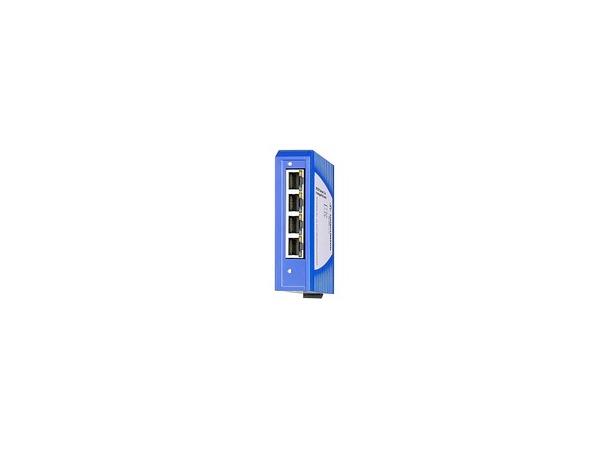

Spider III Standard Line,100mbit 5-port SPIDER-SL-20-04T1M29999TZ9HHHH

Spider III Standard Line,100mbit 5-port

SPIDER-SL-20-04T1M29999TZ9HHHH

Varenr: SL20-04T1M29999TZ9HH
Product description
DescriptionUnmanaged, Industrial ETHERNET Rail Switch, fanless design, store and forward switching mode , Fast Ethernet
Port type and quantity4 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 1 x 100BASE-FX, MM cable, SC sockets
More Interfaces
Power supply/signaling contact1 x plug-in terminal block, 3-pin
Network size - length of cable
Twisted pair (TP)0 - 100 m
Multimode fiber (MM) 50/125 µm0 - 5000 m (Link Budget at 1310 nm = 0 - 8 dB; A=1 dB/km; BLP = 800 MHz*km)
Multimode fiber (MM) 62.5/125 µm0 - 4000 m (Link Budget at 1300 nm = 0 - 11 db; A = 1 dB/km; BLP = 500 MHz*km)
Network size - cascadibility
Line - / star topologyany
Power requirements
Current consumption at 24 V DCMax. 100 mA
Operating Voltage12/24 V DC (9.6 - 32 V DC)
Power consumptionMax. 2.4 W
Power output in BTU (IT)/h8.3
Diagnostics features
Diagnostic functionsLEDs (power, link status, data, data rate)
Ambient conditions
MTBF2.282.902 h (Telcordia)
Operating temperature-40-+70 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10 - 95 %
Mechanical construction
Dimensions (WxHxD)26 x 102 x 79 mm (w/o terminal block)
Weight120 g
MountingDIN rail
Protection classIP30 plastic
Mechanical stability
IEC 60068-2-6 vibration3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field20V/m (80 – 1000 MHz), 10V/m (1000 – 3000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line 2kV power line; 4kV data line
EN 61000-4-5 surge voltagepower line: 2kV (line/earth), 1kV (line/line); 1kV data line
EN 61000-4-6 Conducted Immunity10V (150 kHz - 80 MHz)
EMC emitted immunity
EN 55022EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, EN61131
Scope of delivery and accessories
AccessoriesRail Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail mounting (width 40/70 mm)
Scope of deliveryDevice, terminal block, safety instruction
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
Certificateshttps://www.doc.hirschmann.com/certificates.html
