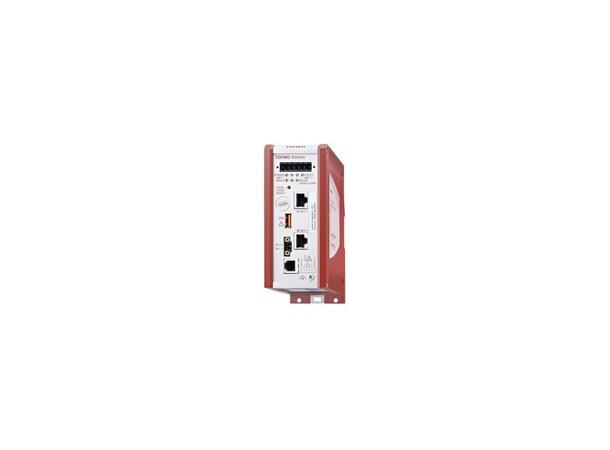

Hirschmann Tofino Firewall, 2xTX TofinoXe-0200T1T1SDDZ9007ZTATXX.X.XX

Hirschmann Tofino Firewall, 2xTX

TofinoXe-0200T1T1SDDZ9007ZTATXX.X.XX

Varenr: TofinoXe-T1T1SDDZ9-1
Product description
DescriptionIndustrial firewall and security router with extensive Layer 2 and Layer 3 redundancy features, DIN rail mounted, fanless design.
Port type and quantity2 ports in total, Ports Fast Ethernet: 2 x 10/100 Mbit/s
Product Life Cycle
Availabilitypassiv
Last Order Date2025-12-31
Last Delivery Date2026-04-30
More Interfaces
V.24 interface1 x RJ11 socket
USB interface1 x USB to connect auto-configuration adapter ACA21-USB
Digital Input1 x plug-in terminal block, 2-pin
Signaling contact1 x plug-in terminal block, 6-pin
Network size - length of cable
Twisted pair (TP)0-100 m
Network size - cascadibility
Line - / star topologyany
Power requirements
Operating Voltage12/24/48 V DC/24V AC (redundant)
Power consumption5 W
Power output in BTU (IT)/h17
Diagnostics features
Alarm and event actionsEvent Logging: Captured by a syslog server or locally into nonvolatile memory for later download via network or USB storage device
Security features
Security functionsPrevention of Denial of Service (DoS) attacks with rate limit controls, Audit capabilities for tracking configuration changes, Additional application layer filtering for SCADA and ICS protocols using flexible LSMs, LSMs pre-installed at factory or purchased separately, All-around protection of automation networks with an optimal price performance ratio
Stateful inspection firewallStateful layer 2, 3 and 4 filtering with optional deep packet inspection for SCADA protocols (depending on purchased LSMs)
Software
ManagementTofino Configurator software
DiagnosticsLEDs (power, mode, fault, save/load, reset , link status), signal contact, syslog, configuration verify
ConfigurationNetwork: Tofino Configurator uses secure communications to configure the Tofino Xenon security appliance ; Manual: Encrypted configuration files may be saved on a USB storage device and loaded into the Tofino Xenon security appliance via a secure USB
Time synchronisationNTP
Operating ModesTest: All traffic is allowed and alerts are generated as per user rules ; Operational: Traffic is filtered and alerts are generated as per user rules
Ambient conditions
Operating temperature0-+60
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)60 mm x 145 mm x 125 mm
Weight660 g
MountingDIN rail
Protection classIP20
Approvals
Basis StandardCE, FCC, C-Tick, EN 61131, EN 60950
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
AccessoriesWall mounting plate for DIN rail mounting, width 2.36 in. (60 mm) (943 971-003), Rail Power Supply RPS 30 (943 662-003), Rail Power Supply RPS 80 EEC (943 662-080), Rail Power Supply RPS 120 EEC (CC) (943 662-121), Tofino Configurator Software (942 016-118), Tofino Modbus TCP Enforcer LSM (942 140-001), Tofino OPC Classic Enforcer LSM (942 140-002), Tofino NetConnect LSM (942 140-004), Tofino EtherNet/IP Enforcer LSM (942 140-003)
Scope of deliveryDevice, terminal blocks, operating instructions, manual on CD
