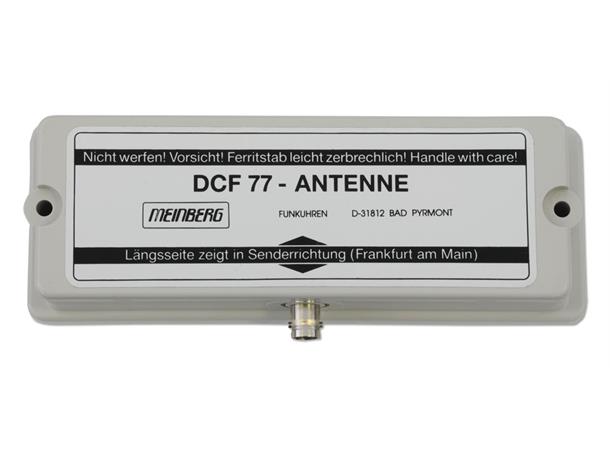

Meinberg AI01 External Indoor DCF77 Antenna
Key Features
- Holder for Wall Mounting
- Preformed Cable
- Indoor Mounting
- Plastic Case
Characteristics
The antenna has to be adjusted. Installation will be simplified by using the holder for wall mounting. When the antenna cable is more than 300m lenght an antenna amplifier is needed.
Physical dimensions
182mm x 37mm x 65mm (width x height x depth)
Electrical connectors
Coaxial cable RG174 for indoor mounting (SMB, BNC connector)
Coaxial cable RG58 for indoor/outdoor mounting (BNC, type-N connector)
The cable is available in all lenghts and with the required connectors.
Antenna connector
Antenna with SMB male connector (RG174 coaxial cable)
or BNC female connector (RG174, RG58 coaxial cable)
or type-N female connector (RG58 coaxial cable) (AA01)
Form Factor
Unbreakable plastic case with fixing holes for wall mounting and rubber sealing (IP53)
Ambient temperature
-25°C ... +65°C
Options
Optional holder for wall mounting, 360° rotatable
RoHS-Status of the product
This product is fully RoHS compliant.
