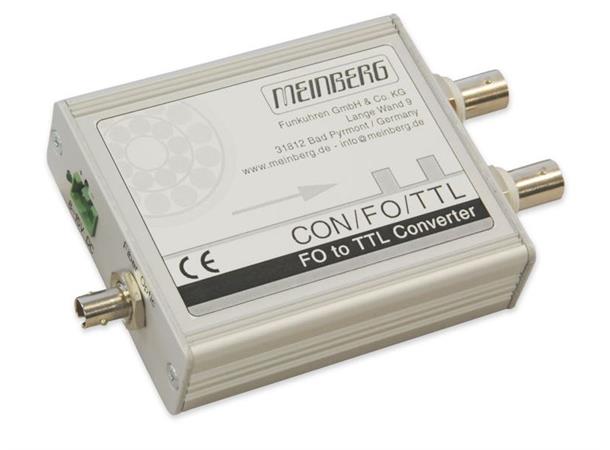

Fiber optic converter for
digital signals up to 10MHz with the following inputs/outputs:
- 1 x 850nm multimode FO input via ST connector
- 2 x TTL output (2.5Vpp into 50 ohm), via female BNC connector
- 1 x power in (18 ... 72VDC / 100mA) via 3pin DFK connector
Built-up in an aluminium profile case (84mm x 24mm x 71mm / width x height x
depth).
A plug-in power supply (100 - 240VAC) is included
