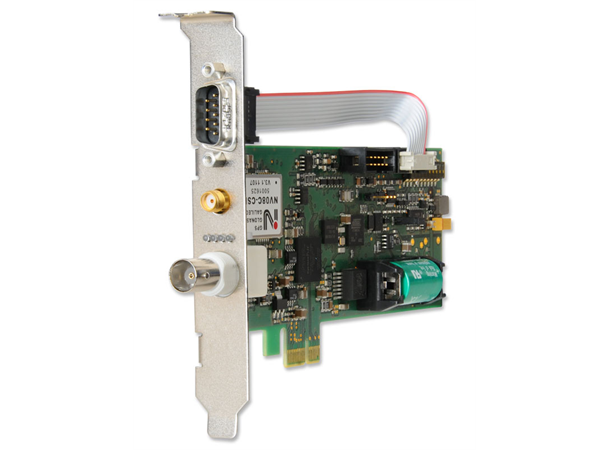

GNS180PEX   (successor for GLN180PEX)

(for GPS, Glonass, Galileo und Beidou-Synchronisation) Slot Card with the following inputs/outputs:
Single lane (x1) PCI Express (PCIe) Interface, PCI Express r1.0a compatible (Gen1, 2.5 Gbps)
- 1 x RS232 interface, 9pin D-Sub male connector
- 1 x Time Code modulated,  IRIG/B, AFNOR, IEEE1344, via female BNC connector
- 1 x Time Code unmodulated (DCLS), IRIG/B, AFNOR, IEEE1344
- 3 x pulse outputs, TTL, free programmable with pulses, switching times, frequency synthesizer or Time Code
        preset to:
        PPO0: pulse per second (PPS), aktive high, pulse duration 200msec
        PPO1: pulse per minute (PPM), aktive high, pulse duration 200msec
        PPO2: DCF77 compatible pulses, TTL, active high
- 1 x 10MHz standard frequency, TTL
- 2 x time capture input, TTL
   (Time Code DCLS, pulse outputs, 10MHz and time capture  on the 9pin D-Sub male connector via DIL-switch)
- 2 x status LEDs
- memory mapped I/O time reads
Low profile board (69 x 150 mm) inclusive of a  L1-GPS/GLONASS outdoor antenna, mounting kit and 20m antenna cable (Belden H155)
