Basic version without CPU, Cooling module, SPT and without power supply 110-240 V AC/110-240 V DC
Versatile and Modular Solution for Time and Frequency Synchronization Application

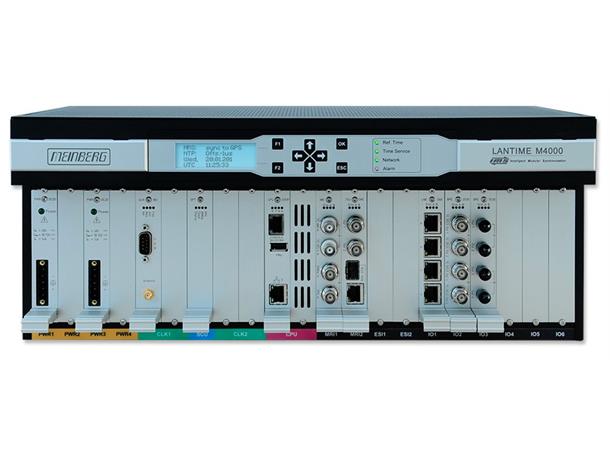

The new LANTIME M4000 is a field-upgradable and extremely flexible system that covers your synchronization needs - today and in the future.
The Meinberg LANTIME M4000 has been designed to fulfill the synchronization requirements of modern 4G/5G/LTE networks. It is capable to act as a Primary Reference Time Clock (PRTC) and, because of its unmatched flexibility, can be deployed in different scenarios. The modularity of the IMS platform (Intelligent Modular System) allows the M4000 to be configured for all areas of a mobile backhaul network: in the core, metro or access network areas.
Selectable Reference Sources:
- GPS: Satellite receiver for the Global Positioning System
- GNS: Combined GPS/GLONASS/Galileo/Beidoo satellite receiver (L1 frequency band), can also be used for mobile applications
- MRS: (GPS, PPS, 10MHz, NTP): Multi Reference Source - several reference sources, adjustable following priority of signal
Optimized space usage
Synchronization of NTP and SNTP compatible clients
Web based status and configuration interface (Demo) and console based graphical configuration utility
IMS - Intelligent Modular System platform
Up to 10 PTP (IEEE 1588-2008) modules
Redundant power and receiver option (eg GPS)
Hot Plug
Arbitrary combinations of modules
Our LANTIME time server can be provided with a large number of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs are only a few of the many expansion options for your NTP server.
Up to 40 additional LAN ports
