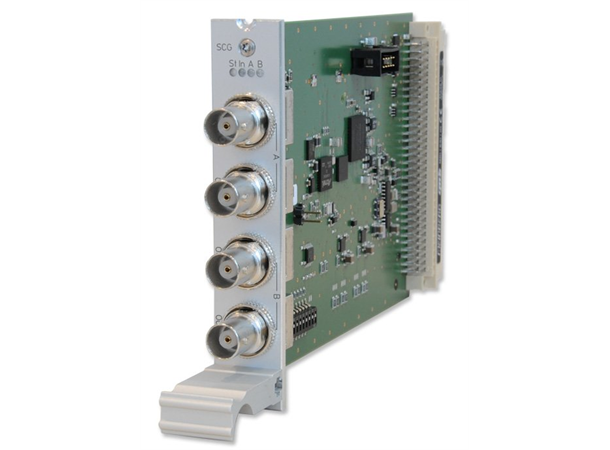

Meinberg IMS-SCG Studio Clock Generator Word Clock unbalanced

Meinberg IMS-SCG Studio Clock Generator

Word Clock unbalanced

Varenr: IMS-SCG181-U
Alt. varenr: 00027224

Studio - Clock Generator
This module generates various Word-Clock or AES11 signals for studio applications.



SCG-U: 4 x BNC outputs with configurable frequencies ( 2.5 V TTL into 75 ohm

  • Wide range of programmable word clock rates between 24Hz – 12.288MHz
  • Base Frequencies: 32kHz, 44.1khz and 48kHz
  • Scales: 0.125, 0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256
  • Base Frequency * Scale = Output Frequency
