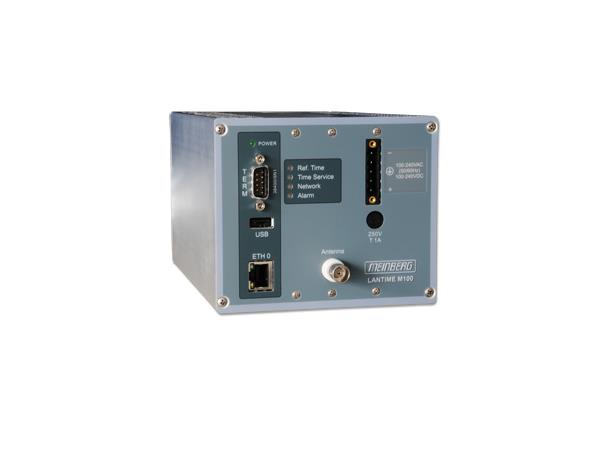

LANTIME M100/GLN
NTP time server for DIN mounting rails
with management CPU and internal time reference:
GPS/GLONASS satellite receiver/radio clock with TCXO-HQ Timebase
- GPS/GLONASS antenna input, SMA female connector
1 x LAN interface 10/100 MBit, RJ45 connector
1 x Terminal RS232 interface, 9pin D-Sub male connector
for initial setup and configuration
1 x USB Service interface
----------------------------------------------------------------------------------------------
Technical specifications:
Power supply: 110 - 240 V AC
Power consumption: max. 20 W
Built-up in an aluminium profile case for 35 mm DIN mounting rail
(125,5 mm wide x 105 mm high x 189 mm deep).
This model is delivered without GPS/GLONASS antenna and 20m Belden H155 maritime cable.
