Meinberg LANTIME M200/GPS

Key Features

- Synchronization of NTP and SNTP compatible clients.

- Web based status and configuration interface (Demo) and console based graphical configuration utility.

- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP.

- USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of configuration and log files.

- Incl. GPS outdoor antenna and mounting brackets. Antenna can be connected with up to 300m of standard coaxial cable RG58.

Characteristics

Type of receiver: 6 channel GPS C/A-code receiver

Type of antenna: Remote powered GPS antenna/converter unit, up to 300m distance to antenna with RG58 and up to 700m distance with RG213 cable.

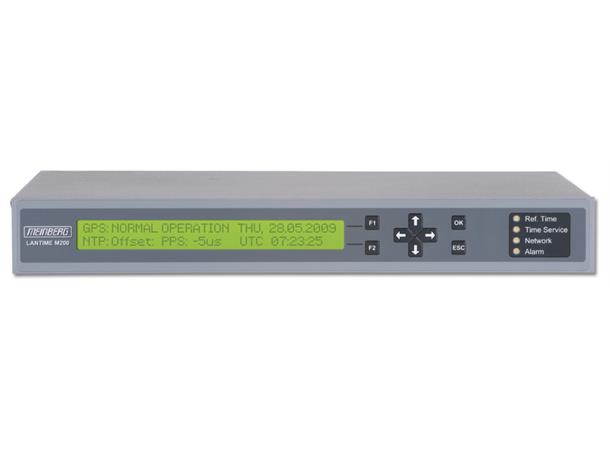

Display: LC-display, 2 x 40 characters, with backlight

Control elements: Eight push buttons to set up basic network parameters and to change receiver settings

Status info: Four bicolor LEDs showing status of:

- reference time

- time service

- network

- alarm

Network Interface: RJ-45 Network Connection 10/100 MBit

Power supply: 24VDC

Power consumption: 20W

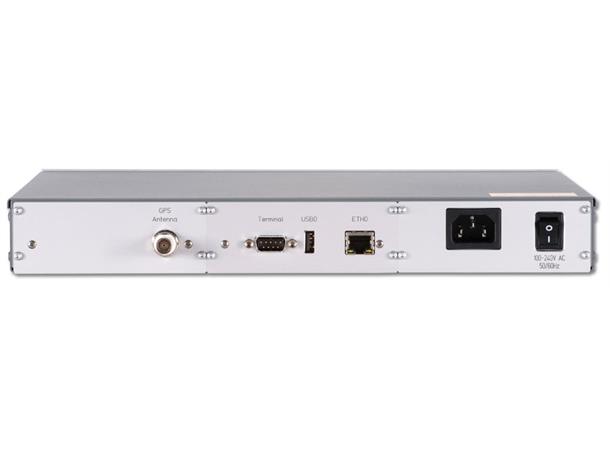

Universal Serial Bus (USB) Ports: 1x USB Port in rear panel:

- install firmware upgrades

- backup and restore configuration files

- copy security keys

- lock/unlock front keys

Single-Board-Computer: i386 compatible 500Mhz CPU, 128 MB RAM

Operating System of the SBC: Linux with nano kernel (incl. PPSkit)

Network protocols OSI Layer 4 (transport layer): TCP, UDP

Network protocols OSI Layer 7 (application layer): TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP

Internet Protocol (IP): IP v4, IP v6

Network Autoconfiguration Support: IPv4: Dynamic Host Configuration Protocol - DHCP (RFC 2131)

IPv6: Autoconfiguration Networking - AUTOCONF

Network Time Protocol (NTP): NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (no RFC)

SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)

MD5 Authentication and Autokey Key Management

Time Protocol (TIME): Time Protocol (RFC 868)

Daytime Protocol (DAYTIME): Daytime Protocol (RFC 867)

IEC 61850: Synchronization of IEC 61850 compliant devices by using SNTP

Hypertext Transfer Protocol (HTTP): HTTP/HTTPS (RC 2616)

Secure Shell (SSH): SSH v1.3, SSH v1.5, SSH v2 (OpenSSH)

Telnet: Telnet (RFC 854-RFC 861)

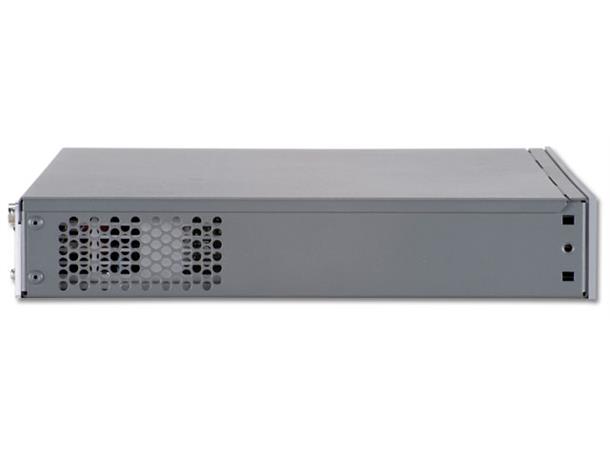

Form Factor: Desktop housing (335 x 45 x 240 mm)

Ambient temperature: 0 ... 50°C / 32 ... 122°F

Humidity: Max. 85%
