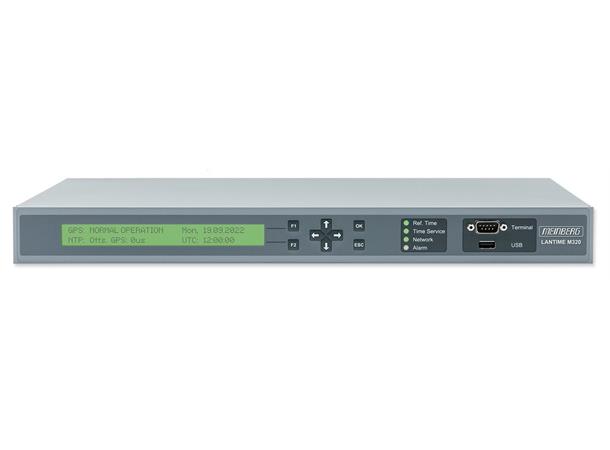

The Meinberg LANTIME M320 time server is used to provide highly accurate time to networks of all sizes. They synchronise all systems that are either NTP or SNTP compatible. As a reference time source, this NTP system typically use a built-in Meinberg reference clock or a compatible external time source (operating in stratum 1 mode). Up to 7 external NTP servers can also be set as time reference (operation as stratum 2 server).

NTP Time Server in 19" Slimline Housing
GPS satellite receiver
incl. GPS antenna and 20m antenna cable RG58
Power Supply (redundant):
1x 100-240 V AC / 100-200 V DC (easily replaceable)
1x 20-60 V DC (easily replaceable)
Signal Outputs:
4 x LAN interface 10/100 MBit, RJ45 connector
2 x RS232 interface, independent, 9pin D-Sub female connector,
with multi data formats timestrings.
1 x PPS, TTL into 50 ohm, pulse duration 200 msec,
active high, female BNC connector
1 x Standard Frequency 10 MHz, TTL into 50 ohm, female BNC connector
1 x Alarm Relay Output, change-over contact, 3pin DFK connector
